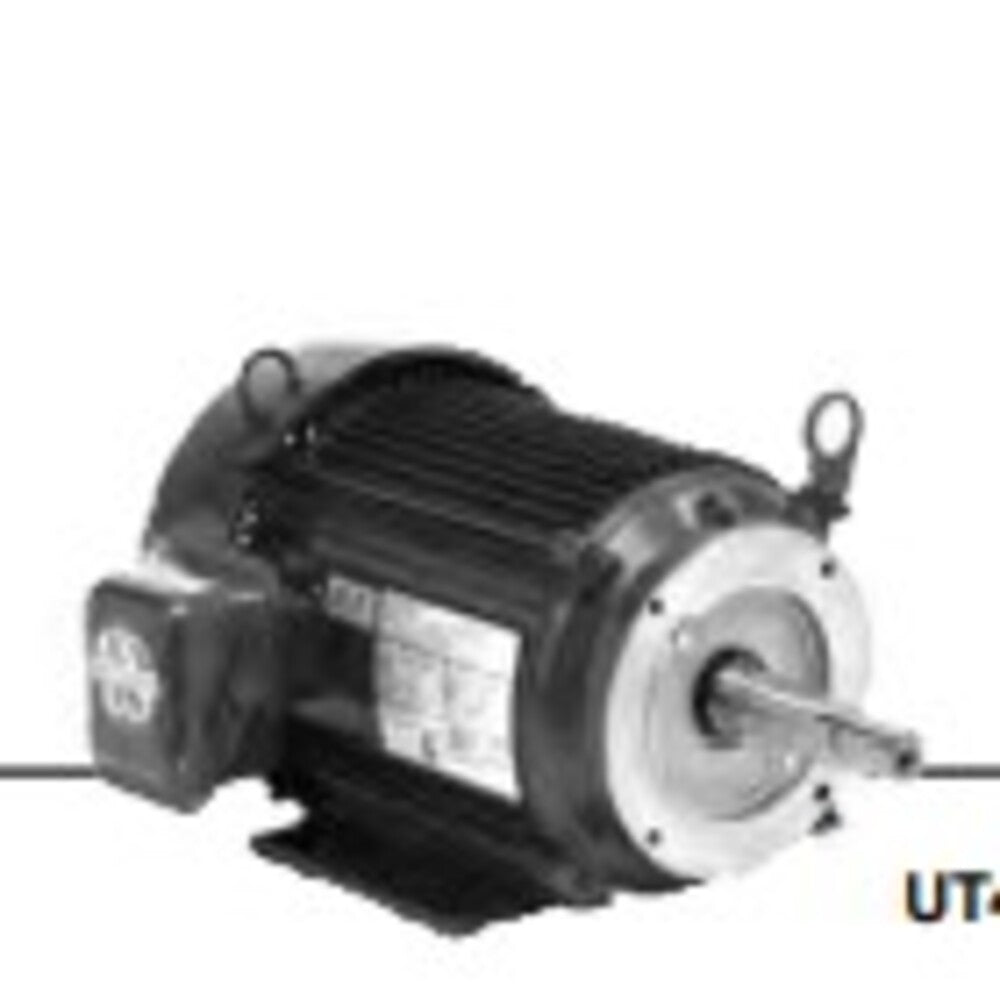

US-Nidec UJ32P1GM Close Coupled Pump Motor 1 1/2 HP

Product Description

The US-Nidec UJ32P1GM Close Coupled Pump Motor is a three phase motor designed for efficient water pumping. With a power rating of one and a half horsepower, this motor operates at three thousand six hundred RPM. It features a TEFC enclosure, which is ideal for protection in various environments.

• Type: Motor, specific to close coupled applications.
• Phase: Three-phase operation ensures better performance and efficiency.
• Bearings: Equipped with quality ball bearings for reliable performance.

Product Highlights

This motor is suitable for applications where a durable and efficient pump motor is needed. It is built from rolled steel, ensuring strength and longevity.

Product Information

Standard Information

• Electrical Type: Three Phase
• Horsepower: 1 1/2

Technical Specifications

• RPM: 3600
• Frame: 143
• Voltage: 575
• Rotation: REV
• Overload: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3 / 6206-2Z-J/C3
• Mounting Type: C-Face / Footed
• Amperage: 1.6
• Shaft Type: Single
• Efficiency: 84.00%
• Insulation Class: F
• Service Factor: 1.25
