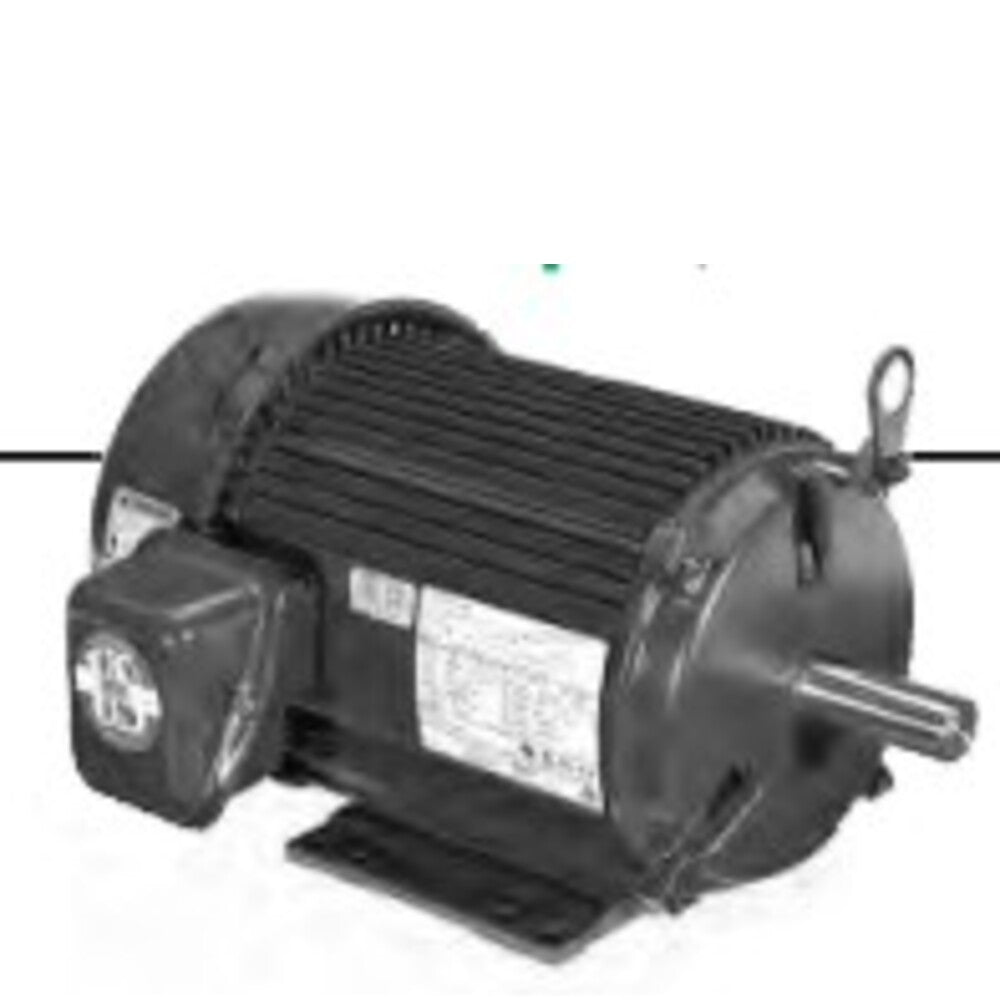

US-Nidec U7V2B Inverter Duty Motor 7 1/2 HP 213T TEAO

Product Description

The US-Nidec U7V2B is an inverter duty motor designed for efficient operation in various industrial applications. This motor features a three-phase design and offers a power rating of seven and one-half horsepower. The frame size is 213T and comes with a totally enclosed air over (TEAO) protection. It operates at both two hundred thirty and four hundred sixty volts and is rated for reversible rotation.

• Three-phase electrical type
• Rated for seven and one-half horsepower
• Rigid base mounting for reliable installation

Product Highlights

This motor performs well in challenging conditions, providing reliability and durability.

Product Information

Standard Information

• Voltage: 230/460
• Phase: Three

Technical Specifications

• Electrical Type: Three Phase
• Power Rating: 7 1/2 HP
• Frame Size: 213T
• Enclosure Type: TEAO
• Rotation: REV
• Material: Aluminum
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Shaft Type: Single
• Efficiency: 91.00%
• Service Factor: 1.25
• Insulation Class: F
