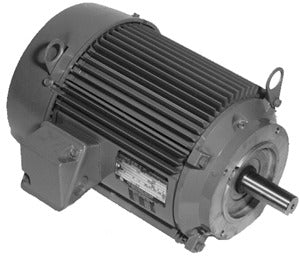

US-Nidec U5P2DCR General Purpose Motor 5 HP 1800 RPM 208-230/460

Product Description

The US-Nidec U5P2DCR General Purpose Motor is a reliable solution for a wide range of industrial applications. This motor operates at five horsepower with a speed of one thousand eight hundred RPM. It is rated for voltages between two hundred eight to two hundred thirty, and four hundred sixty volts. The motor is designed for three-phase systems and features a totally enclosed fan-cooled (TEFC) design, making it suitable for various environments.

• Power: 5 HP
• Speed: 1800 RPM
• Voltage: 208-230/460 V

Product Highlights

This motor is ideal for general industrial equipment such as fans, blowers, compressors, and pumps.

Product Information

Standard Information

• Electrical Type: Three Phase
• Phase: Three

Technical Specifications

• Overload Protection: None
• Enclosure: TEFC
• Amperage: 13.6-12.3/6.2
• Frame Size: 184TC
• Material: Aluminum
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footless
• Rotation: REV
• Efficiency: 90.20%
• Insulation Class: F
• Service Factor: 1.25
