US-Nidec U34S3ACR General Purpose Motor 3/4 Power 56 Frame Replacement MPN

Product Description

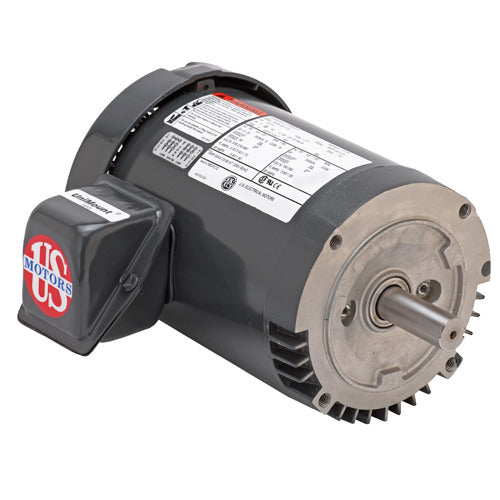

The US-Nidec U34S3ACR is a general-purpose motor designed for a variety of industrial applications. This three-phase motor operates at a horsepower of three-fourths and a speed of twelve hundred RPM. It runs on a voltage of two hundred eight to two hundred thirty or four hundred sixty volts. The motor is constructed from rolled steel and has a C-face footless mounting configuration.

• Power: 3/4 HP at 1200 RPM
• Voltage: 208-230/460V with TEFC enclosure
• Applications: Suitable for fans, blowers, compressors, and pumps

Product Highlights

This motor provides reliability and efficiency for various industrial equipment needs.

Product Information

Standard Information

• Motor Type: General Purpose Motor
• Weight: 32 lbs

Technical Specifications

• Frame Size: 56
• Enclosure Type: TEFC
• Amperage: 3.1-3.2/1.6
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting Type: C-Face / Footless
• Electrical Type: Three Phase
• Rotation: REV
