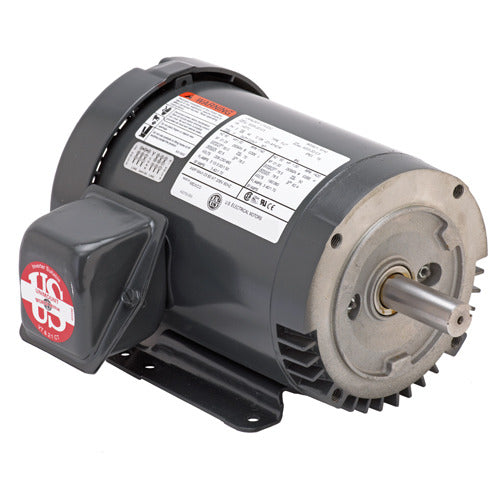

US-Nidec U34S2GC General Purpose Motor 1 HP 56 Frame TEFC

Product Description

The US-Nidec U34S2GC is a three-phase general purpose motor designed for various industrial applications. This motor features a one horsepower rating and is built within a frame size of fifty-six. It operates on a voltage of five hundred seventy-five volts and has a robust rolled steel construction. The TEFC enclosure ensures durability and protection against environmental factors.

• Three-phase operation
• Rated at 1 HP
• TEFC construction for durability

Product Highlights

This motor is ideal for use in HVAC systems, pumps, and compressors. Its high efficiency and reliable performance make it suitable for continuous operation in demanding conditions.

Product Information

Standard Information

• Type: General Purpose Motor
• Motor Electrical Type: Three Phase

Technical Specifications

• HP: 1
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Three
• Voltage: 575
• Rotation: REV
• Overload Protector: None
• Material: Rolled Steel
• Mounting Type: C-Face / Footed
• Shaft Type: Single
