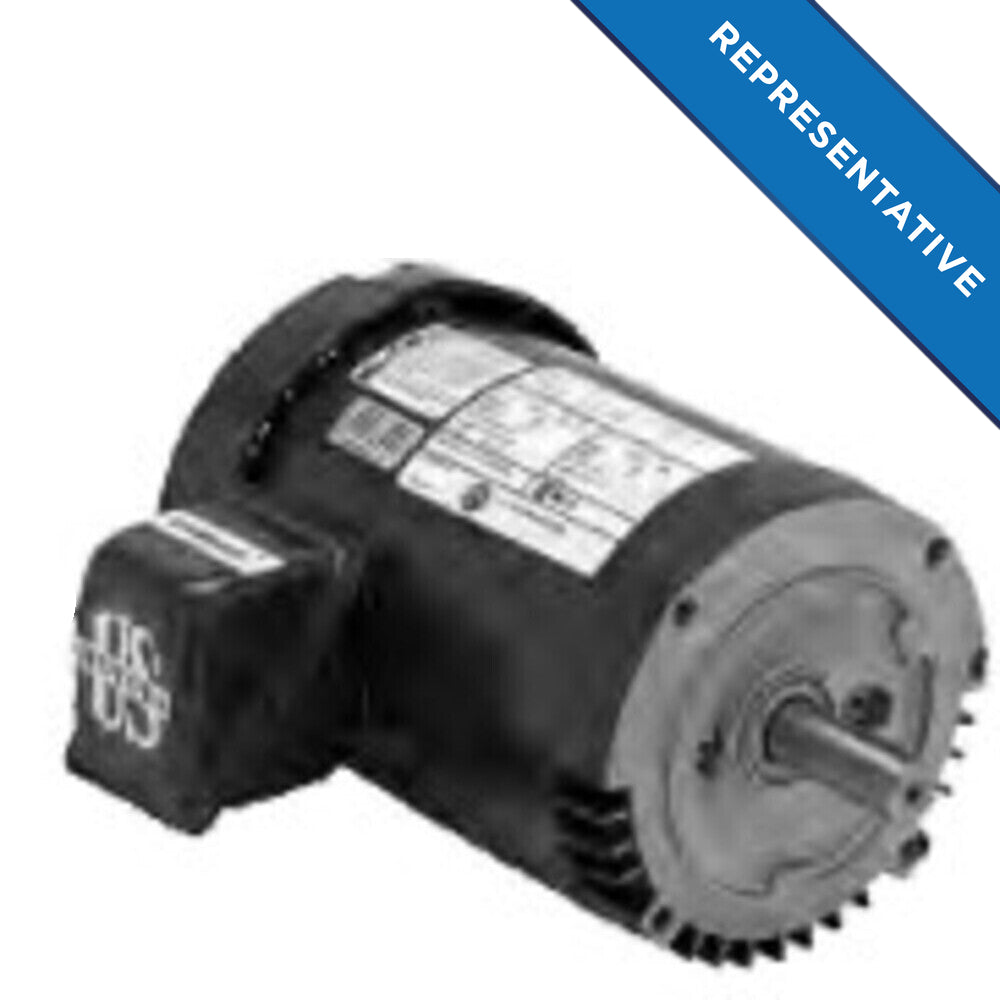

US-Nidec U34S1ACR General Purpose Motor 3/4 HP 3600 RPM 208-230/460

Product Description

The US-Nidec U34S1ACR is a general purpose motor designed for various industrial applications. This motor operates efficiently at three fourths of a horsepower and a speed of three thousand six hundred RPM. It is suitable for use with fans, blowers, compressors, pumps, and direct connected equipment.

• Voltage: 208-230/460
• Frame: 56
• Enclosure Type: TEFC

Product Highlights

Built with high-quality rolled steel, the U34S1ACR ensures durability and longevity in demanding environments. Its compact design and C-face mounting provide versatility for installation. The motor's three-phase design offers reliable performance in industrial settings.

Product Information

Standard Information

• Amperage: 2.4-2.2/1.1
• Phase: Three
• Rotation: Reverse

Technical Specifications

• Diameter: 6.5 inches
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3
• Efficiency: 75.50%
• Service Factor: 1.25
• Insulation Class: F
• Weight: 27 lbs
• Mounting Type: C-Face / Footless
