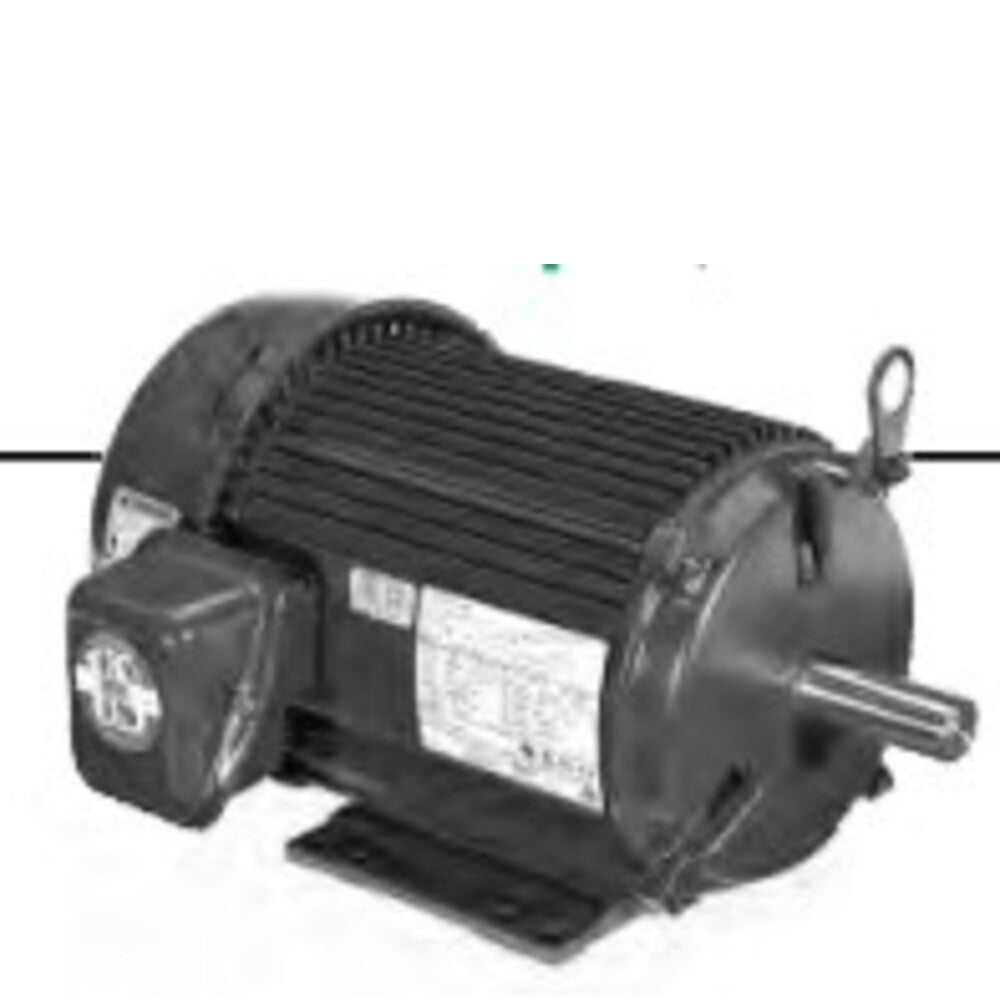

US-Nidec U32V2BC Inverter Duty Motor 2 HP 145TC TEAO

Product Description

The US-Nidec U32V2BC Inverter Duty Motor is a three-phase motor designed for efficiency and durability. It operates at 2 horsepower and is built with a 145TC frame size. This motor features a totally enclosed air-over (TEAO) design that protects it from external elements. It has a voltage rating of 230/460 volts and is suitable for applications requiring reverse rotation.

• Electrical Type: Three Phase
• Material: Rolled Steel
• Bearings Type: Ball / Ball

Product Highlights

The U32V2BC motor is ideal for various industrial applications where performance and reliability are essential. Its construction provides stability under demanding conditions, making it suitable for HVAC systems, pumps, and other heavy-duty operations.

Product Information

Standard Information

• Voltage: 230/460
• Frame: 145TC

Technical Specifications

• HP: 2
• Overload Protector: None
• Rotational Speed: 1 Speed
• Bearings Size: 6203-2Z-J/C3 / 6205-2Z-J/C3
• Mounting Type: C-Face / Footed
• Efficiency: 85.50%
• Service Factor: 1.25
