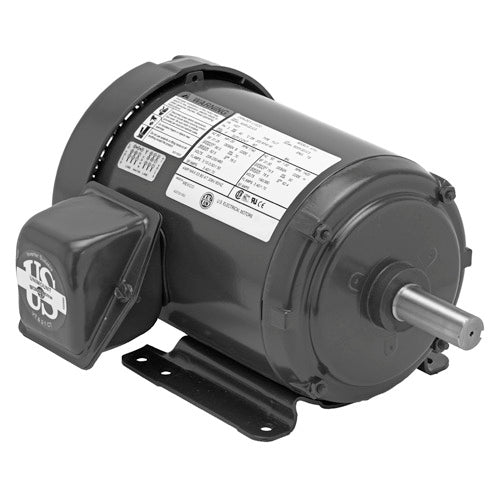

US-Nidec U32P1D General Purpose Motor 1 1/2 HP 3600 RPM 208-230/460

Product Description

The US-Nidec U32P1D is a general purpose motor with a power rating of one and a half horsepower. It operates at a speed of three thousand six hundred revolutions per minute and is designed for voltages of two hundred eight to two hundred thirty or four hundred sixty. This motor is suitable for various applications, including fans, blowers, compressors, and pumps.

• Voltage: 208-230/460
• Power: 1.5 HP
• Phase: Three

Product Highlights

This motor is built with a rolled steel enclosure that offers TEFC protection. It utilizes ball bearings for smooth operation and features a single shaft type. It is designed for horizontal or footed mounting, making it versatile for different industrial setups.

Product Information

Standard Information

• Amperage: 4.2-3.9/1.9
• Frame: 143T

Technical Specifications

• Efficiency: 84.00%
• Overload Protector: None
• Rotation: REV
• Bearing Type: Ball / Ball
• Mounting Type: Horizontal / Footed
• Motor Insulation Class: F
• Service Factor: 1.25
• Number of Speeds: 1
