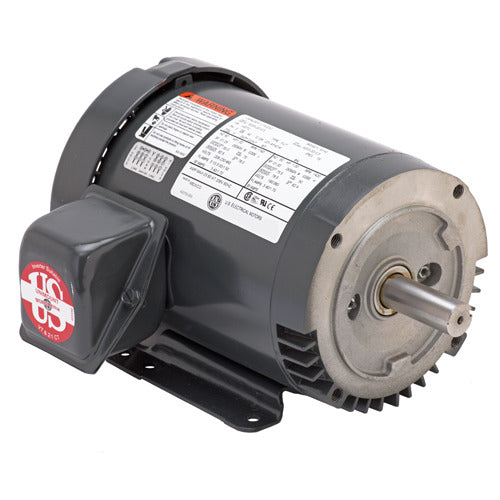

US-Nidec U2P1DC General Purpose Motor 2 HP 3600 RPM 208-230/460

Product Description

The US-Nidec U2P1DC General Purpose Motor is designed for various industrial applications. It operates at two horsepower and has a rotational speed of thirty-six hundred RPM. This motor can work with voltages ranging from two hundred eight to two hundred thirty or four hundred sixty volts, making it suitable for different electrical setups.

• TEFC enclosure for reliability
• Designed for three-phase applications
• C-face and footed mounting options

Product Highlights

This general-purpose motor is used in fans, blowers, compressors, and pumps. It is ideal for direct connected equipment.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U2P1DC

Technical Specifications

• HP: 2
• RPM: 3600
• Voltage: 208-230/460
• Frame: 145TC
• Amperage: 5.4-4.9/2.5
• Enclosure: TEFC
• Phase: Three
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings Size: 6203-2Z-J/C3 / 6205-2Z-J/C3
• Mounting Type: C-Face / Footed
• Shaft Type: Single
• Efficiency: 86.50%
• Service Factor: 1.25
