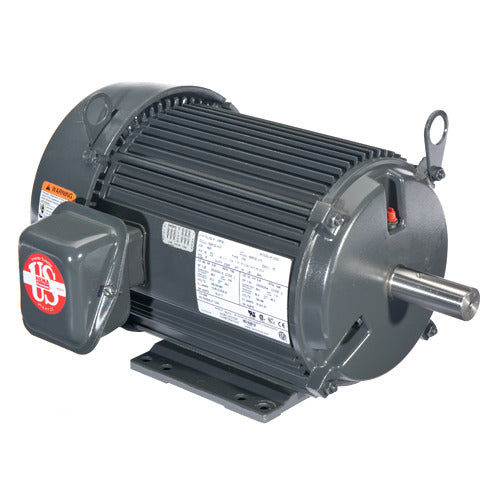

US-Nidec U20P2G General Purpose Motor 20 HP 1800 RPM 575 Voltage

Product Description

The US-Nidec U20P2G is a general-purpose motor designed for industrial applications. This motor operates at twenty horsepower with a speed of eighteen hundred RPM. It utilizes a three-phase electrical type and is built to operate efficiently at a voltage of five hundred seventy-five volts.

• High efficiency with a rating of ninety-three percent
• Constructed with aluminum for reduced weight
• Compatible with various industrial equipment like fans and pumps

Product Highlights

The U20P2G motor is suitable for diverse applications, including blowers and compressors, making it a versatile choice for many industrial setups.

Product Information

Standard Information

• Brand: US-Nidec
• Electrical Type: Three Phase

Technical Specifications

• Horsepower: 20
• RPM: 1800
• Voltage: 575
• Frame Size: 256T
• Amperage: 19
• Enclosure Type: TEFC
• Mounting Type: Horizontal / Footed
• Efficiency: 93.00%
• Bearings Type: Ball / Ball
