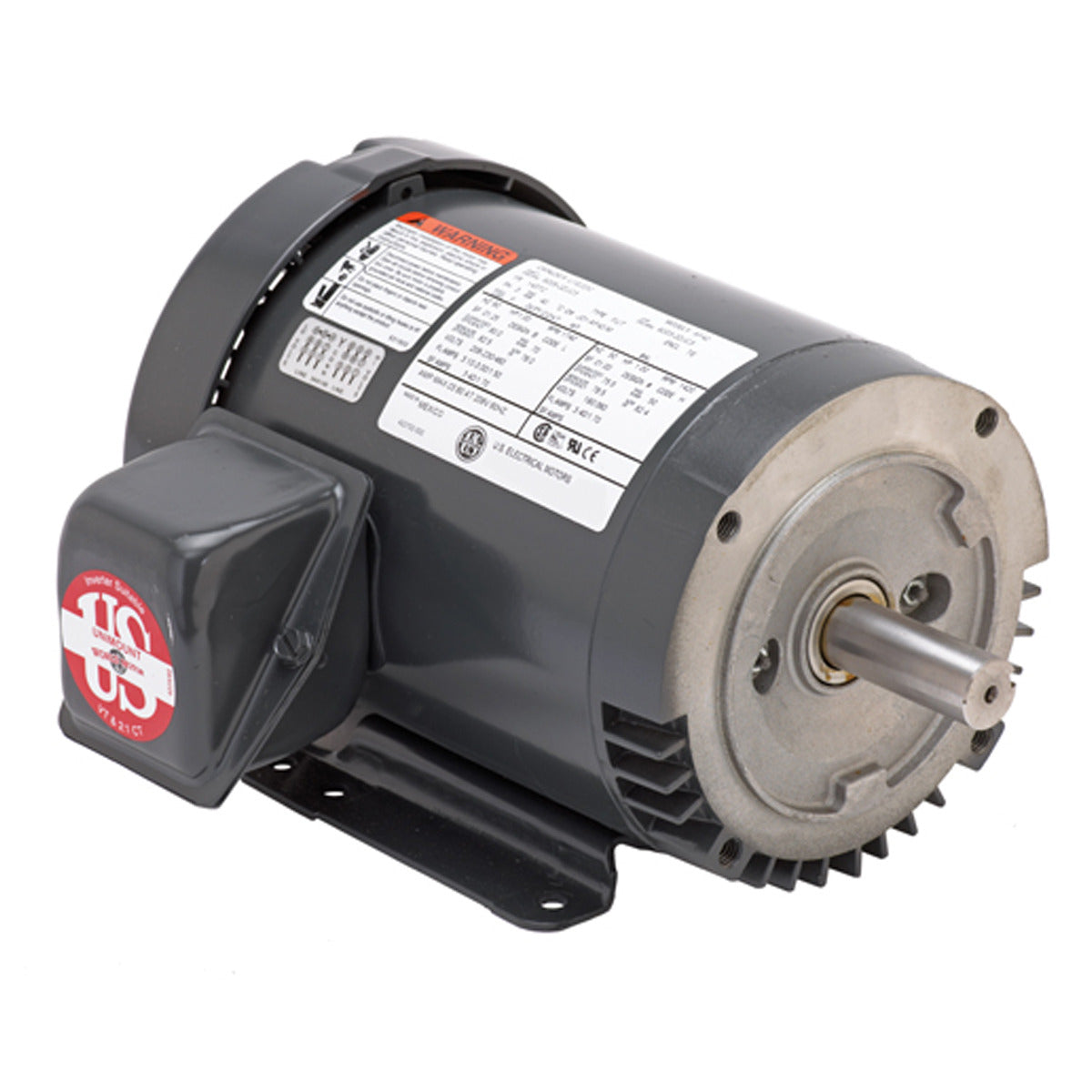

US-Nidec U15P1AF General Purpose Motor 15 HP 3600 RPM 208-230/460

Product Description

The US-Nidec U15P1AF is a general purpose motor designed for a variety of industrial applications. This motor features a horsepower rating of fifteen and operates at speeds of three thousand six hundred RPM. It is compatible with voltages of two hundred eight to two hundred thirty or four hundred sixty. The frame size is 215T and it can handle different mounting types including horizontal and footed setups.

• Rated for three phase operation.
• Constructed with aluminum for durability.
• Ball bearings ensure smooth operation.

Product Highlights

This motor supports general industrial equipment such as fans, blowers, compressors, and pumps.

Product Information

Standard Information

• Type: General Purpose Motor
• Efficiency: 91%

Technical Specifications

• Horsepower: 15
• RPM: 3600
• Voltage: 208-230/460
• Amperage: 40-35/17.4
• Frame: 215T
• Enclosure: TEFC
• Phase: Three
• Rotation: REV
