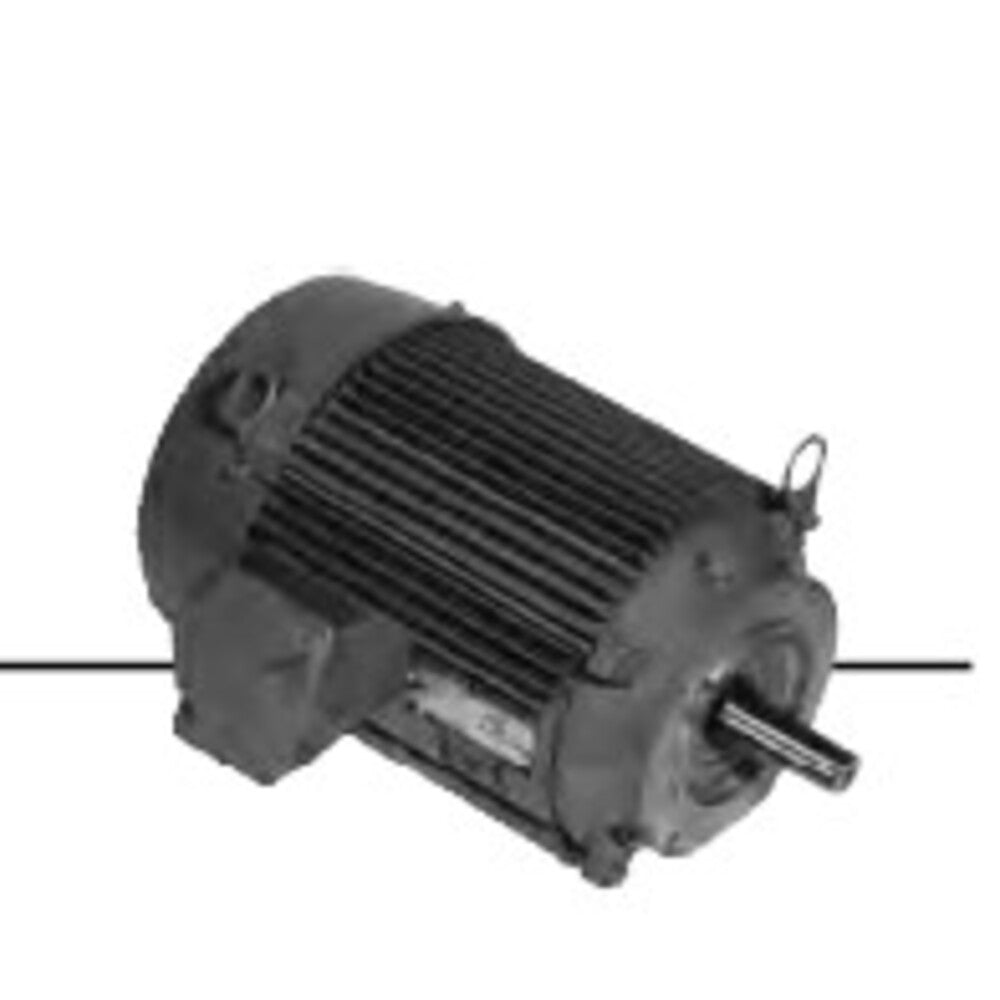

US-Nidec U14S2DCR General Purpose Motor 1/4 HP 1800 RPM 208-230/460

Product Description

The US-Nidec U14S2DCR General Purpose Motor is a robust and reliable solution for various industrial applications. This motor operates at one quarter horsepower with a standard speed of 1800 revolutions per minute. The voltage requirements include 208-230 or 460 volts, making it versatile for different electrical settings.

• Three-phase electrical type
• TEFC enclosure protects against dust and moisture
• Durable rolled steel construction

Product Highlights

This motor is suitable for applications such as fans, blowers, compressors, and pumps, providing effective performance in general industrial setups.

Product Information

Standard Information

• MPN: U14S2DCR
• Brand: US-Nidec

Technical Specifications

• Horsepower: 0.25 HP
• Speed: 1800 RPM
• Voltage: 208-230/460
• Phase: Three
• Amperage: 1-1/0.5
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure Type: TEFC
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footless
