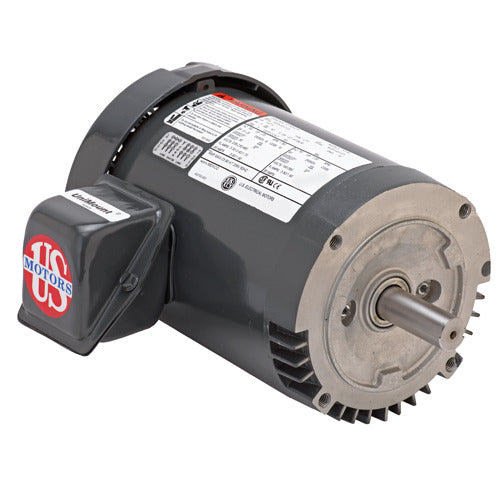

US-Nidec U13S2ACR General Purpose Motor 1/3 HP 1800 RPM 208-230/460

Product Description

The US-Nidec U13S2ACR General Purpose Motor provides reliable performance for various industrial applications. This motor delivers one-third horsepower at a speed of one thousand eight hundred RPM. It operates on voltages of two hundred eight to two hundred thirty or four hundred sixty. The motor features a totally enclosed fan-cooled (TEFC) design and is built for three-phase operation. It is suitable for equipment such as fans, blowers, and compressors.

• Frame Size: 56
• Amperage: 1.2-1.2/0.6
• Material: Rolled Steel

Product Highlights

This motor is designed for robust performance and efficiency. It is built to withstand various industrial conditions and provide consistent operation.

Product Information

Standard Information

• Electrical Type: Three Phase
• Overload Protector: None

Technical Specifications

• Voltage: 208-230/460
• Speed: 1800 RPM
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3 / 6203-2Z-J/C3
• Mounting Type: C-Face / Footless
• Diameter: 6.5 inches
• Efficiency: 75.50%
• Service Factor: 1.25
