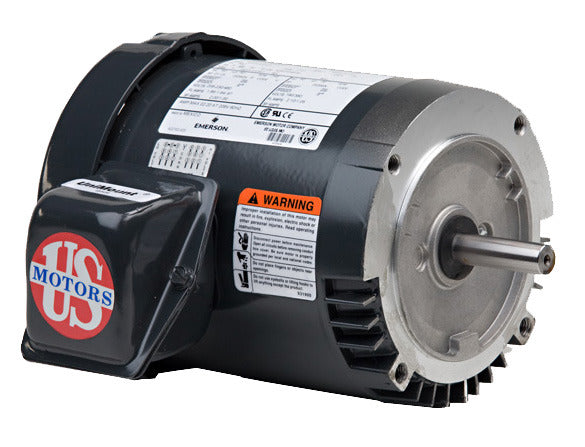

US-Nidec U12S2ACR General Purpose Motor 1/2 HP 1800 RPM 208-230/460

Product Description

The US-Nidec U12S2ACR is a general purpose motor suitable for various industrial applications. With a power rating of one half horsepower and a speed of eighteen hundred RPM, this motor operates efficiently at voltages of 208-230/460. The frame size is fifty-six, making it compatible with various mounting options.

• Effective for fans, blowers, compressors, and pumps
• Constructed from rolled steel for durability
• Designed for three-phase electrical type with TEFC enclosure

Product Highlights

This motor excels in applications like fans, compressors, and direct-connected equipment, providing reliable performance in industrial settings.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U12S2ACR

Technical Specifications

• Horsepower: 1/2
• RPM: 1800
• Voltage: 208-230/460
• Frame Size: 56
• Amperage: 1.8-1.7/0.9
• Enclosure: TEFC
• Phase: Three
• Material: Rolled Steel
• Diameter: 6.5 inches
• Rotation: REV
• Bearings Type: Ball/Ball
• Mounting Type: C-Face/Footless
• Shaft Type: Single
• Efficiency: 75.50%
• Service Factor: 1.25
• Insulation Class: F
