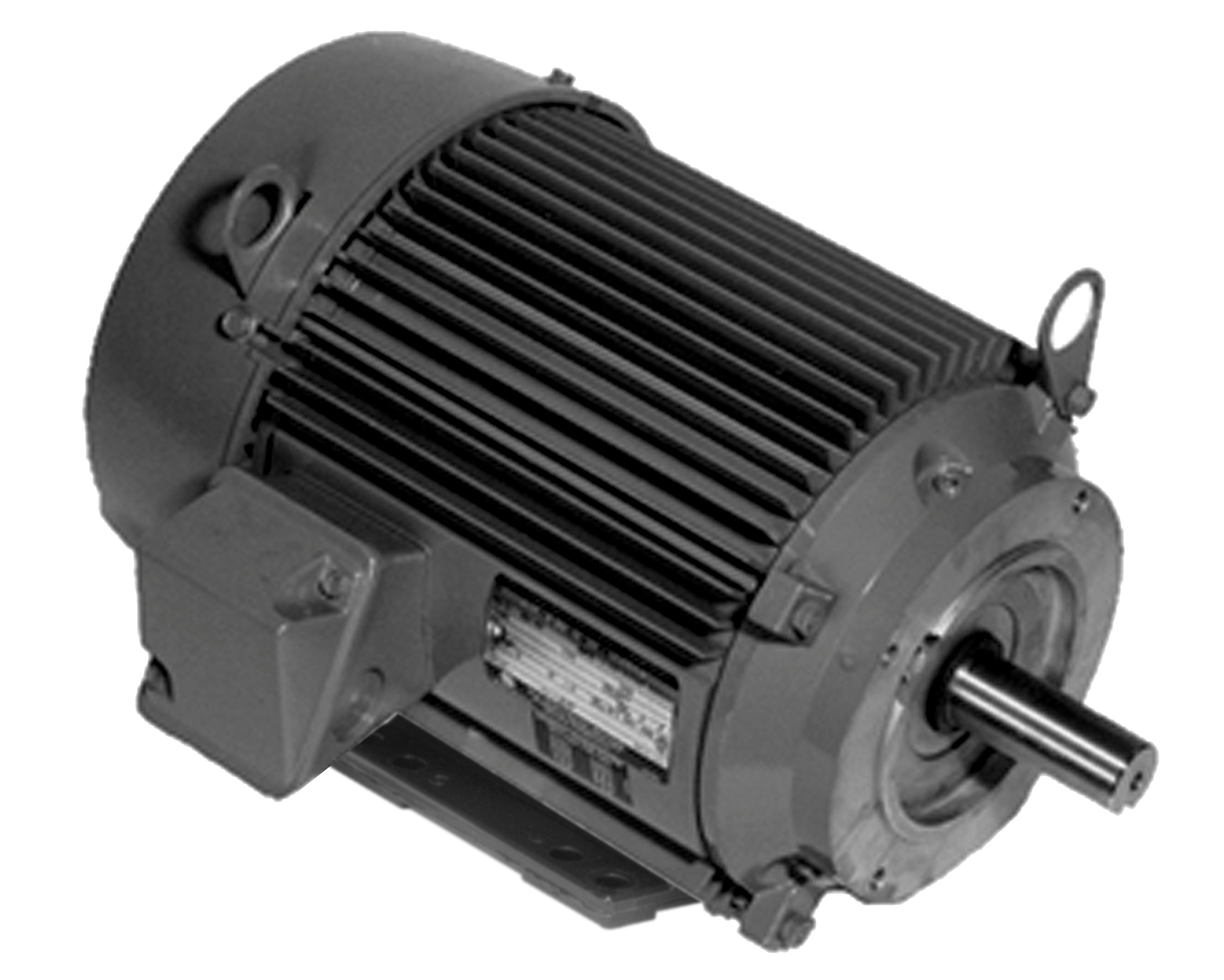

US-Nidec U12S1AC General Purpose Motor 1/2 HP 3600 RPM 208-230/460

Product Description

The US-Nidec U12S1AC is a general-purpose motor designed for various industrial applications. It has a power output of one half horse power and operates at a speed of three thousand six hundred RPM. This motor functions at voltages of two hundred eight to two hundred thirty or four hundred sixty, making it versatile for different setups. The frame size is fifty-six and the type of enclosure is TEFC.

• Suitable for fans, blowers, compressors, and pumps.
• Designed for three-phase electrical systems.
• Contains ball bearings for reliability.

Product Highlights

This motor meets the demands of various industrial equipment applications while ensuring durability and efficiency.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: U12S1AC

Technical Specifications

• Power: 1/2 HP
• Speed: 3600 RPM
• Voltage: 208-230/460
• Frame: 56
• Amperage: 1.7-1.6/0.8
• Enclosure: TEFC
• Phase: Three
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting Type: C-Face / Footed
