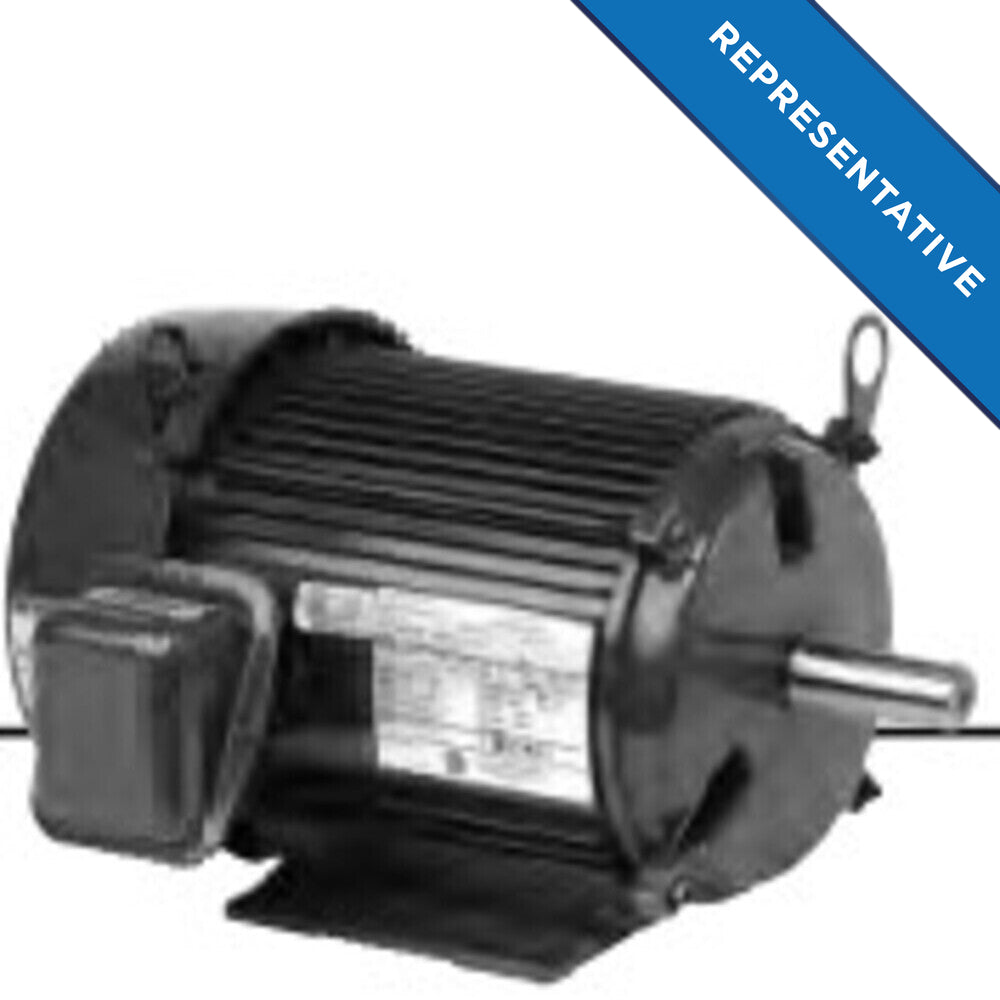

US-Nidec U10P1G General Purpose Motor 10 HP 3600 RPM 575V

Product Description

The US-Nidec U10P1G is a general purpose motor designed for various industrial applications. With a power rating of 10 HP and a speed of 3600 RPM, this motor is suitable for fans, blowers, compressors, and pumps. The motor operates at 575 volts and has a three-phase electrical configuration. It features a totally enclosed fan cooled (TEFC) design, ensuring durability and reliability in harsh environments.

• Efficient Aluminum construction
• Ball bearings for smooth operation
• Horizontal and footed mounting options

Product Highlights

This motor has a NEMA Premium Efficiency rating of 91.70%, providing energy savings and lower operational costs. It is built to handle a service factor of 1.25, allowing for higher starting torque and better performance.

Product Information

Standard Information

• Amperage: 9.4
• Mounting: Horizontal / Footed

Technical Specifications

• Voltage: 575
• Frame Size: 215T
• Rotation: Reverse
• Overload Protector: None
• Bearing Type: Ball / Ball
• Shaft Type: Single
• Efficiency: 91.70%
