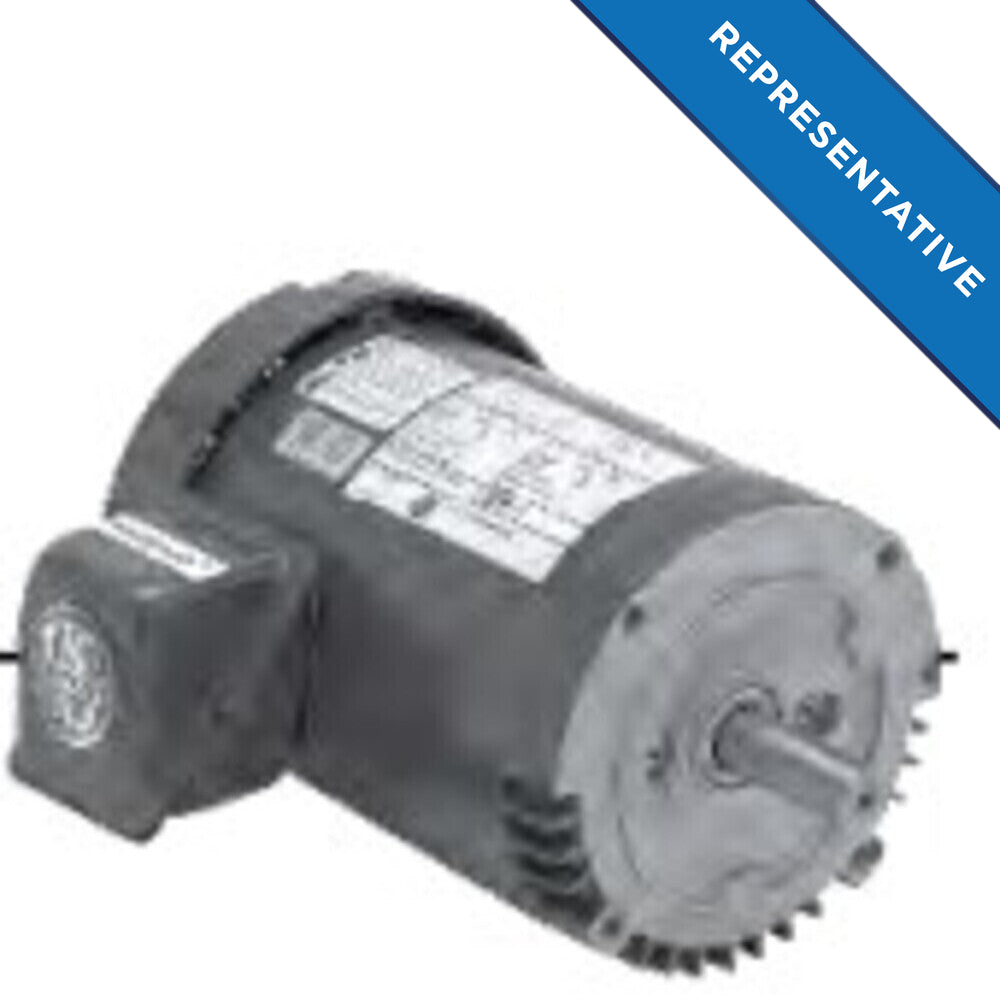

US-Nidec T34S1A General Purpose Motor 3/4 HP (Single) Replacement MPN

Product Description

The US-Nidec T34S1A is a reliable general purpose motor designed for a variety of applications, including fans, blowers, compressors, and pumps. This motor features a horsepower rating of three-quarters and operates at a speed of three thousand six hundred RPM. Designed for three-phase electric systems, it can handle voltages of two hundred eight to two hundred thirty or four hundred sixty. The heavy-duty construction includes a rolled steel frame with a mounting type of rigid base, making it suitable for industrial environments.

• Operates at 3600 RPM
• Rated for three-phase electrical systems
• Suitable for various general industrial equipment

Product Highlights

Compact and designed for efficiency, the T34S1A motor is an excellent choice for direct connected equipment, ensuring effective power delivery in demanding applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T34S1A

Technical Specifications

• Horsepower: 3/4 HP
• RPM: 3600
• Voltage: 208-230/460
• Frame: 56
• Amperage: 2.5-2.5/1.2
• Enclosure: TEFC
• Phase: Three
• Material: Rolled Steel
• Diameter: 6.5 inches
• Rotation: REV
• Mounting: Rigid Base
• Shaft Type: Single
• Bearing Type: Ball
• Bearing Size: 6203
• Service Factor: 1.15
• Insulation Class: B
