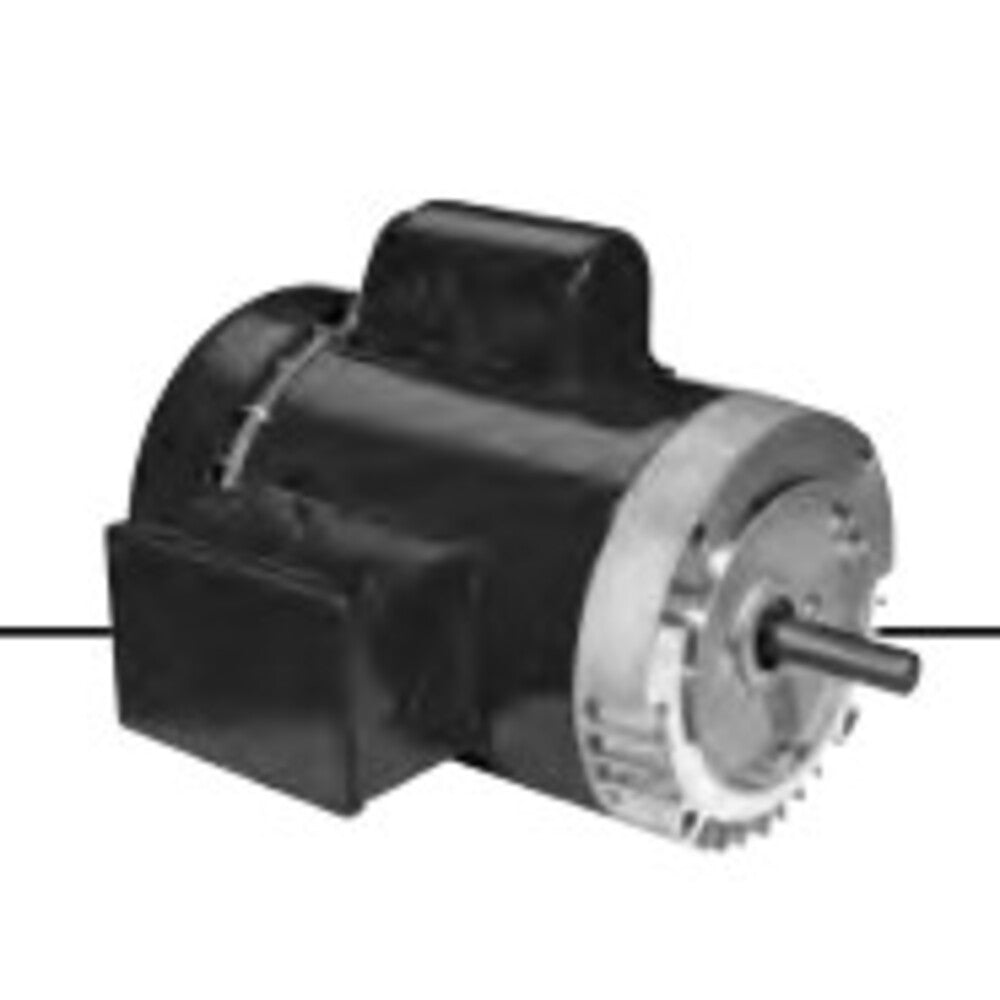

US-Nidec T34C2ZCR General Purpose Motor 3/4 HP

Product Description

The US-Nidec T34C2ZCR is a general purpose motor designed for versatile applications. This motor is rated at three-fourths horsepower and features a TEFC enclosure. It accommodates various electrical requirements with voltages ranging from one hundred to one hundred twenty volts for single phase and two hundred to two hundred forty volts. The design includes a durable rolled steel construction ensuring longevity and reliability.

• Electrical Type: Capacitor Start
• Mounting Type: C-Face / Footless
• Amperage: 9.2-8.4 / 4.6-4.2

Product Highlights

This motor supports applications where consistent performance is essential. Its robust construction and various capabilities make it a suitable choice for both residential and commercial use.

Product Information

Standard Information

• Frame Size: 56
• Voltage: 100-120/200-240
• Phase: Single

Technical Specifications

• Diameter: 6.5 inches
• Bearings Type: Ball / Ball
• Bearings Size: 6203
• Rotation: REV
• Overload Protector: None
• Service Factor: 1.25
• Insulation Class: F
