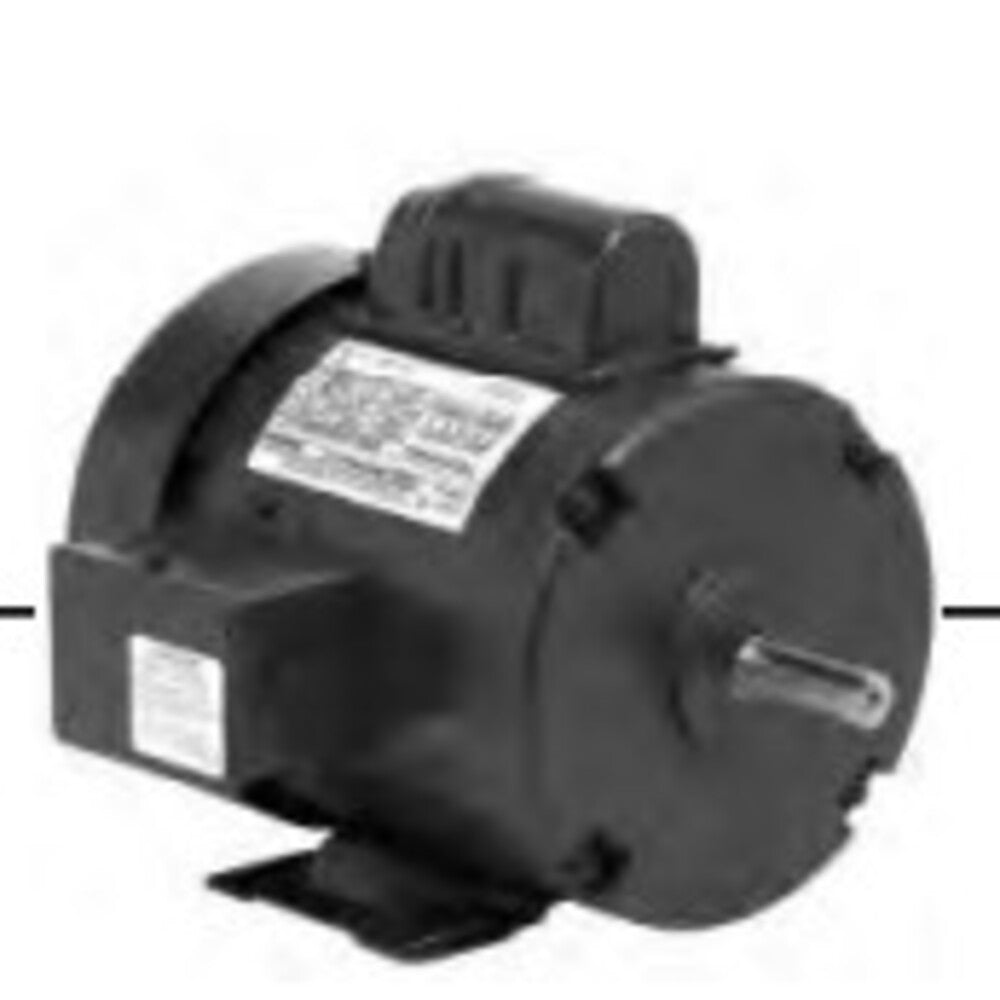

US-Nidec T34C2J General Purpose Motor 3/4 HP 1 Phase 115/208-230

Product Description

The US-Nidec T34C2J is a reliable 3/4 horsepower general purpose motor designed for various applications. This motor operates on a voltage of 115/208-230 and features a single phase electrical type. It is ideal for HVAC, industrial machinery, and general applications where performance is essential.

• Cap start electrical type for effective starting.
• TEFC enclosure protects against dust and moisture.
• Rigid base mounting for stable installation.

Product Highlights

This motor supports a wide range of uses in both residential and commercial settings, providing versatility and durability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T34C2J

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 115/208-230
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure Type: TEFC
• Phase: Single
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Amperage: 11.4/5.7-5.7
• Shaft Type: Single
• Efficiency: 69.00%
