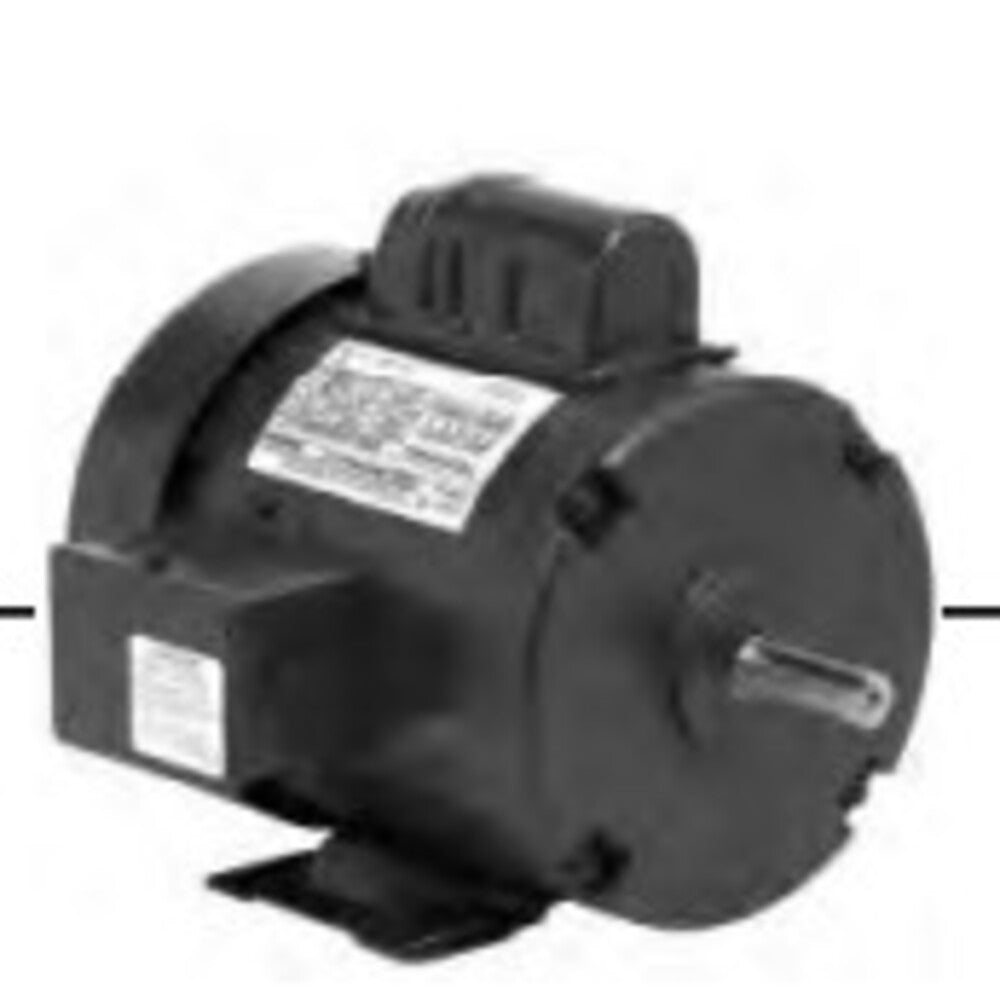

US-Nidec T32C2JH General Purpose Motor 1 1/2 HP 56H

Product Description

The US-Nidec T32C2JH is a general purpose motor designed for various applications. This motor is rated at one and one-half horsepower and features a TEFC enclosure, ensuring durability and performance in diverse environments. The motor operates on a voltage range of 115 to 230 volts and can rotate in reverse direction.

• Electrical Type: Cap Start
• Frame Size: 56H
• Diameter: 6.5 inches

Product Highlights

This motor is built with rolled steel and has a Rigid Base mounting type. It employs ball bearings for smooth operation and has an efficiency rating of eighty percent. Its single-phase design makes it suitable for applications needing reliable and consistent performance.

Product Information

Standard Information

• MPN: T32C2JH
• Brand: US-Nidec

Technical Specifications

• Motor Type: General Purpose
• Overload Protection: None
• Bearings Type: Ball / Ball
• Amperage: 14.4 / 8.0 - 7.2
• Service Factor: 1.15
• Insulation Class: B
• Bearings Size: 6203 / 6203
• Rotation: REV
