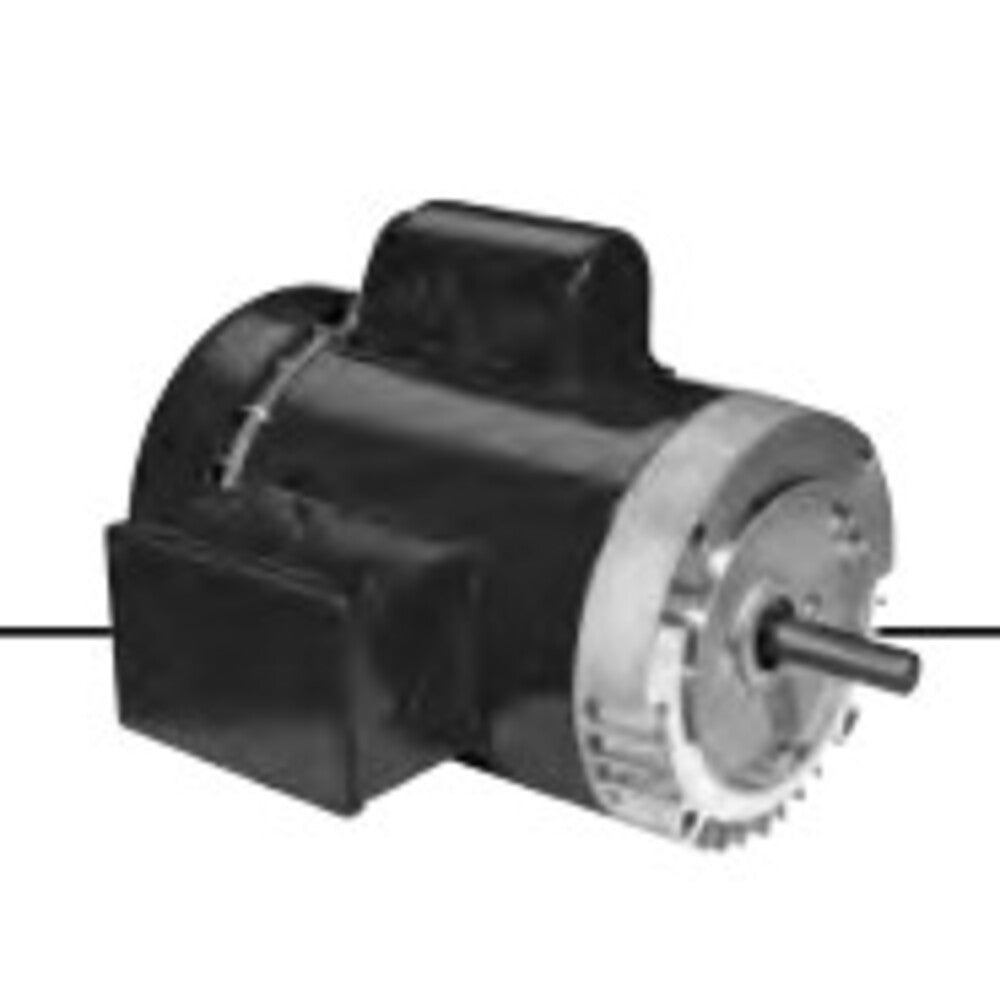

US-Nidec T32C1JHC General Purpose Motor

Product Description

The US-Nidec T32C1JHC is a general purpose motor designed for various applications. It is a Cap Start motor with a power output of one and a half horsepower. This motor operates at a speed of three thousand six hundred RPM and has a frame size of 56HC. The enclosure is TEFC, which helps protect the internal components from environmental hazards.

• Electrical Type: Cap Start
• Voltage: 115/208-230
• Amperage: 14.6/8.1-7.4

Product Highlights

This motor is suitable for tasks requiring a robust and reliable power source. It features a C-Face and footed mounting design, allowing for easy installation in various setups. The motor's rolled steel construction ensures durability in demanding environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T32C1JHC

Technical Specifications

• Horsepower: 1.5
• RPM: 3600
• Frame: 56HC
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Bearings Type: Ball/Ball
• Bearings Size: 6203
• Mounting Type: C-Face/Footed
• Efficiency: 78.50%
• Service Factor: 1.15
