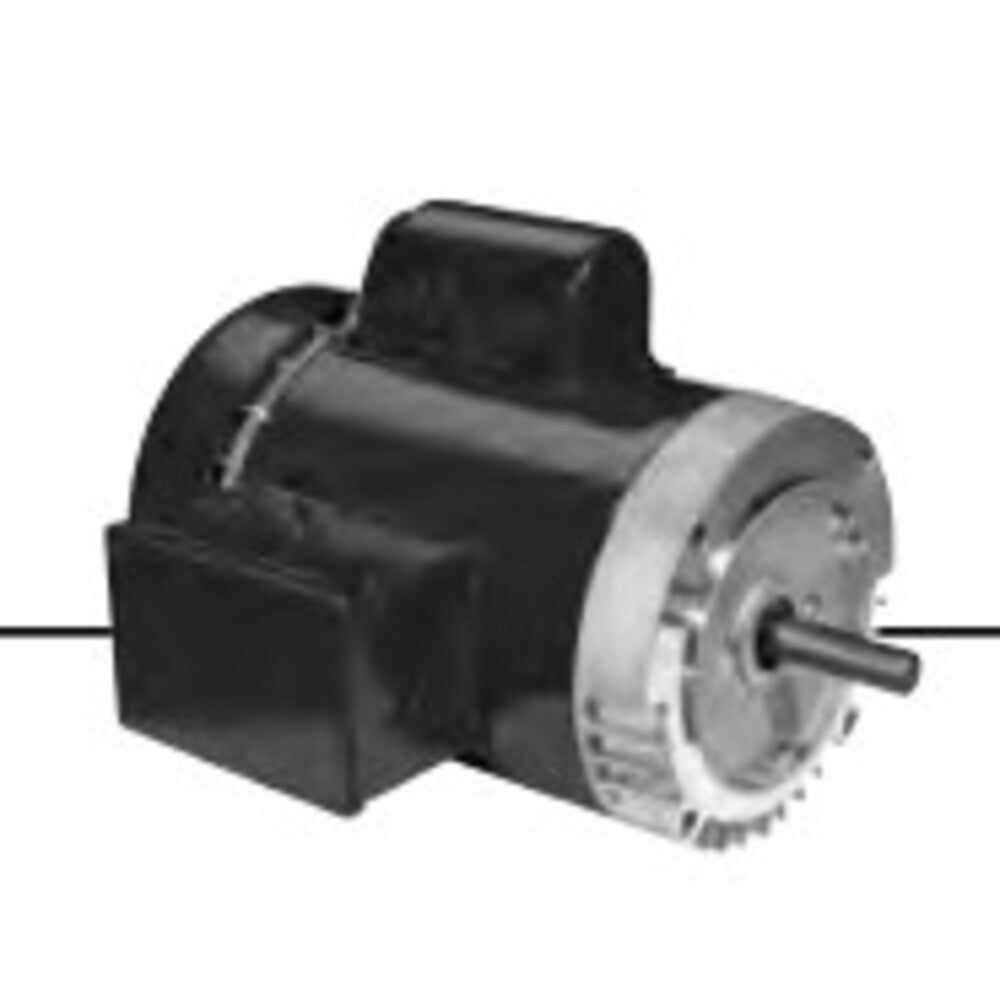

US-Nidec T2CA1JCR General Purpose Motor 2 HP 3600 RPM

Product Description

The US-Nidec T2CA1JCR is a general purpose motor with a power rating of 2 HP and operates at a speed of 3600 RPM. It is designed with a TEFC (Totally Enclosed Fan Cooled) enclosure, which allows for better protection in various environments. With a single phase operation and a voltage range of 115/208-230, this motor is versatile for different applications.

• High efficiency at 80% for optimal performance
• Durable rolled steel construction for longevity
• Automatic overload protection to enhance safety

Product Highlights

The US-Nidec T2CA1JCR is suitable for various industrial and commercial applications due to its robust design and reliable performance.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T2CA1JCR

Technical Specifications

• Electrical Type: Cap Start
• Frame Size: 56
• Diameter: 6.5 inches
• Mounting Type: C-Face
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Service Factor: 1.15
• Insulation Class: B
