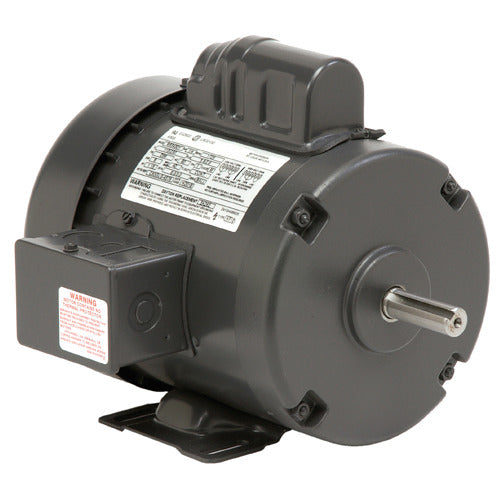

US-Nidec T1CM1J General Purpose Motor 1 HP 3600 RPM TEFC

Product Description

The US-Nidec T1CM1J is a general-purpose electric motor designed for diverse applications. With a power rating of one horsepower and a speed of thirty-six hundred RPM, this motor is well-suited for a variety of tasks. It features a totally enclosed fan-cooled (TEFC) design which helps protect it from dust and moisture, enhancing its durability.

• Voltage: 115/208-230
• Mounting: Rigid Base
• Overload Protection: Manual

Product Highlights

This motor provides reliable performance for HVAC systems, pumps, and other equipment needing a robust drive. The rolled steel construction ensures longevity, while the single-phase wiring supports ease of installation.

Product Information

Standard Information

• Electrical Type: Cap Start
• Phase: Single

Technical Specifications

• Power (HP): 1
• RPM: 3600
• Frame Size: 56
• Diameter: 6.5 inches
• Amperage: 13.6/6.9-6.8
• Bearings Type: Ball / Ball
• Enclosure: TEFC
• Material: Rolled Steel
