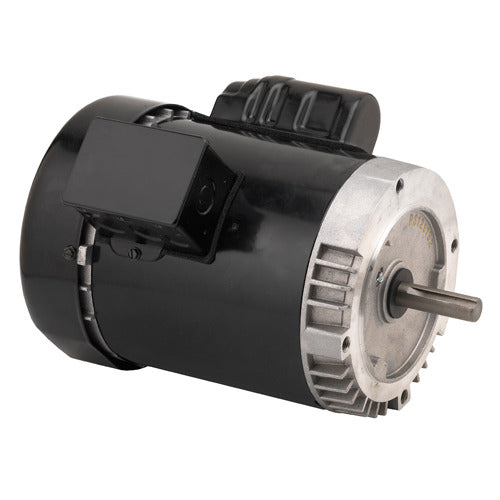

US-Nidec T13C3JCR General Purpose Motor 1/3 HP Frame 56

Product Description

The US-Nidec T13C3JCR is a general purpose motor designed to provide reliable performance for various applications. This motor operates with a horsepower of one third, making it suitable for light to moderate tasks. The frame size is fifty-six, and it features a TEFC enclosure that protects it from dust and moisture.

• Electrical Type: Capacitor Start
• Voltage: 115/208-230
• Single-Phase Operation

Product Highlights

This motor is ideal for HVAC applications, fans, and pumps where a durable power source is needed. The motor's rolled steel construction ensures longevity and resistance to wear. It also utilizes ball bearings for smooth operation while reducing maintenance requirements.

Product Information

Standard Information

• Material: Rolled Steel
• Rotation: Reverse

Technical Specifications

• Frame: 56
• Diameter: 6.5 inches
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting Type: C-Face / Footless
• Service Factor: 1.15
• Insulation Class: B
