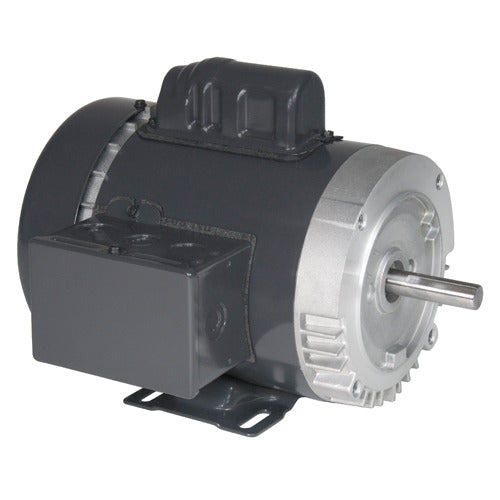

US-Nidec T13C2JC General Purpose Motor 1/3 HP 56 Frame TEFC

Product Description

The US-Nidec T13C2JC is a versatile general purpose motor ideal for various applications. This motor features a one-third horsepower capacity, making it suitable for small machinery and equipment that require reliable performance. With a TEFC enclosure, this motor is designed to operate in environments that need protection from dust and moisture. It operates on both 115 and 208-230 volts, allowing for flexible installation in different setups.

• HP: 1/3
• Voltage: 115/208-230
• Frame: 56

Product Highlights

This motor offers strong performance with a rolled steel design and efficient operation for general use in various settings, providing reliable torque and efficiency.

Product Information

Standard Information

• Electrical Type: Cap Start
• Enclosure: TEFC

Technical Specifications

• Amperage: 6.6/3-3.3
• Bearings Type: Ball/Ball
• Bearings Size: 6203/6203
• Mounting Type: C-Face / Footed
• Rotation: REV
• Material: Rolled Steel
• Frame Size: 56
• Diameter: 6.5 inches
