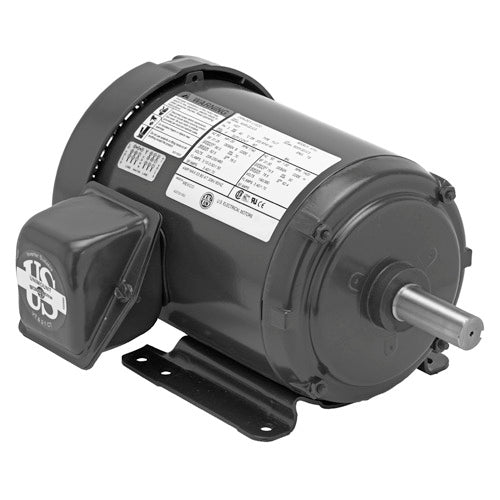

US-Nidec T12S1A General Purpose Motor 1/2 HP 3600 RPM

Product Description

The US-Nidec T12S1A is a general purpose motor designed for various industrial applications. This motor operates at one-half horsepower and has a speed of three thousand six hundred RPM. It is suitable for use in fans, blowers, compressors, pumps, and other direct-connected equipment.

• Power: 1/2 HP
• Voltage: 208-230/460
• Phase: Three

Product Highlights

This motor features a rolled steel construction and a totally enclosed fan cooled (TEFC) design, providing durability and efficient operation.

Product Information

Standard Information

• Frame Size: 56
• Mounting Type: Rigid

Technical Specifications

• Amperage: 2.0-2.0/1.0
• Overload Protection: None
• Bearings Type: Ball / Ball
• Bearings Size: 6203
• Rotation: REV
• Service Factor: 1.15
• Insulation Class: B
• Ambient Temperature: 40°C
