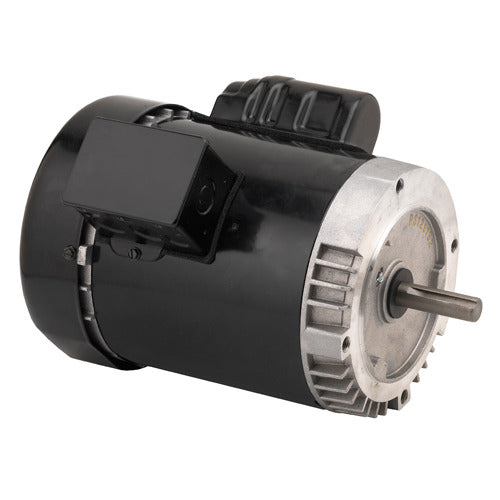

US-Nidec T12CM2JCR General Purpose Motor 1/2 HP (Single Phase) Replacement MPN

Product Description

The US-Nidec T12CM2JCR is a general purpose motor designed for various applications. This motor operates at one half horsepower and is capable of handling a range of tasks efficiently.

• Electrical Type: Capacitor Start
• Voltage: 115/208-230
• Enclosure Type: TEFC

Product Highlights

This motor is built with rolled steel for durability and features manual overload protection for safety. It is designed for single-phase operation and provides reliable performance for various industrial and commercial uses.

Product Information

Standard Information

• HP: 1/2
• Frame: 56
• Bearings Type: Ball / Ball

Technical Specifications

• Diameter: 6.5 inches
• Rotation: REVERSE
• Mounting Type: C-Face / Footless
• Amperage: 9.0/4.3-4.5
• Efficiency: 60.70%
• Insulation Class: B
• Service Factor: 1.15
• Bearings Size: 6203
