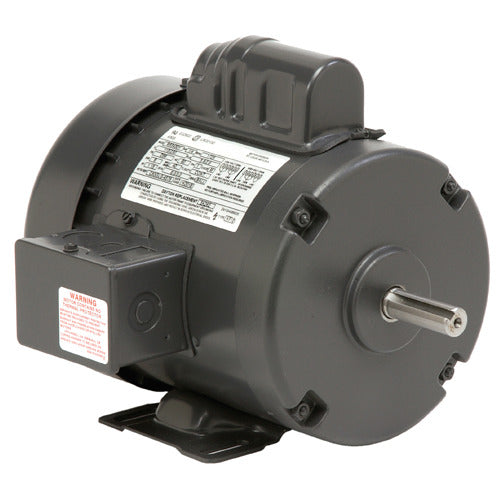

US-Nidec T12CM2J General Purpose Motor Power Half Horsepower 115/208-230 Replacement MPN

Product Description

The US-Nidec T12CM2J is a general-purpose motor designed for various applications requiring a reliable and efficient power source. With a horsepower of one-half and a frame size of fifty-six, this motor is engineered for durability and performance. It operates on a voltage range of one hundred fifteen to two hundred eight-twenty-three, making it suitable for residential and industrial applications.

• Electrical Type: Cap Start
• Weight: Not specified
• Mounting Type: Rigid Base

Product Highlights

This motor features a TEFC enclosure that protects it from environmental factors, ensuring longevity and reliability. It includes manual overload protection to safeguard against equipment damage, and the single-phase design ensures compatibility with standard electrical systems.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: T12CM2J

Technical Specifications

• HP: 1/2
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Voltage: 115/208-230
• Phase: Single
• Rotation: REV
• Overload Protector: Manual
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Amperage: 9.0/4.3-4.5
• Shaft Type: Single
• Efficiency: 60.70%
• Service Factor: 1.15
