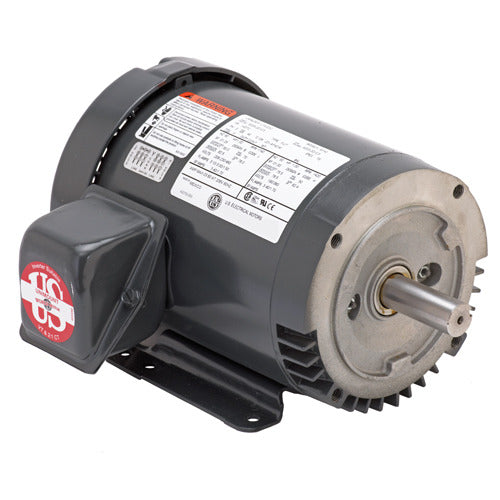

US-Nidec S7P2AC General Purpose Motor 7 1/2 HP 1800 RPM 208-230/460

Product Description

The US-Nidec S7P2AC General Purpose Motor is designed for industrial applications requiring reliable performance. This three-phase motor operates at seven and a half horsepower and a speed of one thousand eight hundred RPM. It features a TEFC enclosure which protects against dust and moisture.

• Powerful motor for industrial equipment
• Three-phase operation ensures efficiency
• Designed for direct connection to various types of machinery

Product Highlights

This motor is ideal for fans, blowers, compressors, and pumps. It offers robust construction with rolled steel material and comes with ball bearings for reliable operation.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: S7P2AC

Technical Specifications

• Power: 7.5 HP
• Speed: 1800 RPM
• Voltage: 208-230/460
• Frame Size: 213TC
• Amperage: 20-18.1/9.1
• Enclosure Type: TEFC
• Phase: Three
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footed
