US-Nidec S7P1A General Purpose Motor 7 1/2 HP 3600 RPM 208-230/460

Product Description

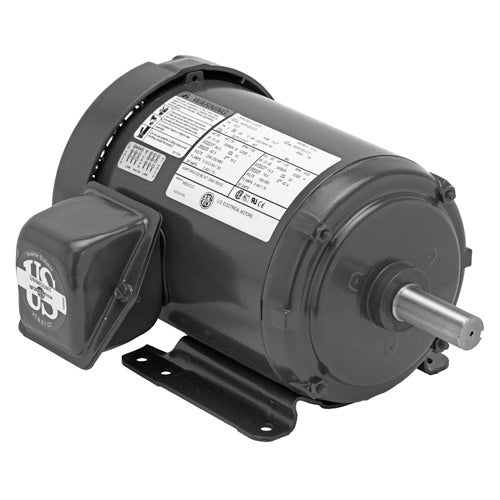

The US-Nidec S7P1A is a general purpose motor designed for various industrial applications. This motor operates at seven and a half horsepower with a speed of three thousand six hundred RPM. It is designed to function efficiently at voltages of two hundred eight to two hundred thirty or four hundred sixty. This motor is often used in fans, blowers, compressors, pumps, and other direct connected equipment.

• Power: 7.5 HP
• Voltage: 208-230/460
• Frame: 213T

Product Highlights

This motor is suitable for heavy-duty tasks in industrial settings. The robust construction ensures reliability and durability. The TEFC enclosure protects the motor from dust and moisture buildup.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: S7P1A

Technical Specifications

• Amperage: 19.9-17.9/9
• Enclosure: TEFC
• Phase: Three
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6205-2Z-J/C3 / 6208-2Z-J/C3
• Mounting Type: Horizontal / Footed
• Rotation: REV
• Efficiency: 89.50%
• Service Factor: 1.15
