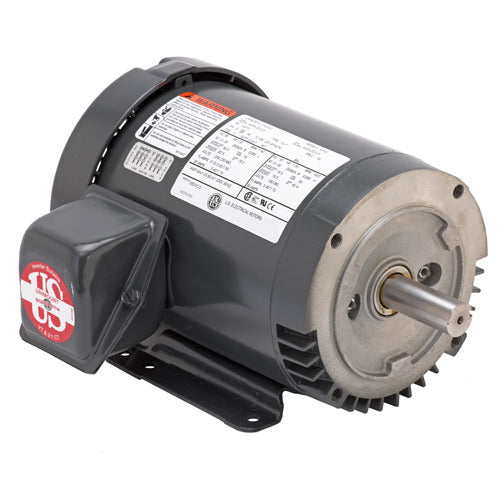

US-Nidec S5P2AC General Purpose Motor 5 HP (1 Unit) Replacement MPN

Product Description

The US-Nidec S5P2AC is a reliable general-purpose motor with a rating of five horsepower. Designed for various industrial applications, this motor operates at an RPM of one thousand eight hundred and supports a voltage range of two hundred eight to two hundred thirty/ four hundred sixty volts. Its robust design features a Totally Enclosed Fan Cooled (TEFC) enclosure and accommodates single shaft mounting. This motor is ideal for use in equipment such as fans, blowers, compressors, and pumps.

• Five horsepower, one thousand eight hundred RPM
• Voltage: two hundred eight to two hundred thirty/ four hundred sixty
• Built with durable rolled steel and features ball bearings

Product Highlights

Engineered for efficient operation and long service life, the US-Nidec S5P2AC is suitable for three-phase power systems. It demonstrates a high efficiency rating of eighty-nine point five percent, contributing to energy savings in industrial settings.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: S5P2AC

Technical Specifications

• Power Rating: 5 HP
• Speed: 1800 RPM
• Voltage: 208-230/460
• Frame Size: 184TC
• Amperage: 13.5-12.5/6.2
• Phase: Three
• Enclosure Type: TEFC
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footed
• Rotation: REV
