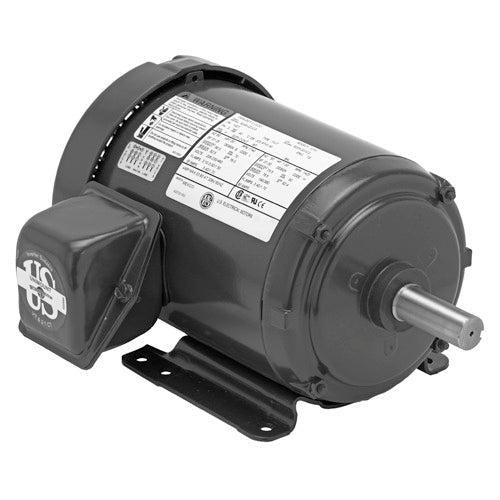

US-Nidec S10P1A General Purpose Motor 10 HP 3600 RPM 208-230/460

Product Description

The US-Nidec S10P1A is a general purpose motor designed for various industrial applications. This motor has a power output of ten horsepower and operates at a speed of three thousand six hundred RPM. It is designed to work with voltages of 208-230/460 and has a frame size of 215T. Ideal for use in environments requiring reliable operation, the S10P1A is well-suited for fans, blowers, compressors, and pumps.

• Power Output: 10 HP
• Voltage: 208-230/460
• Enclosure Type: TEFC

Product Highlights

This motor features a robust rolled steel construction which ensures durability. It operates on three-phase electrical type and offers a maximum efficiency rating of 90.20%. Equipped with ball bearings, it is built for horizontal or footed mounting, which provides versatility in installation.

Product Information

Standard Information

• MPN: S10P1A
• Brand: US-Nidec

Technical Specifications

• Power: 10 HP
• RPM: 3600
• Voltage: 208-230/460
• Amperage: 26.5-23.5/11.7
• Frame Size: 215T
• Enclosure Type: TEFC
• Phase: Three
• Material: Rolled Steel
• Mounting Type: Horizontal / Footed
• Bearings Type: Ball / Ball
