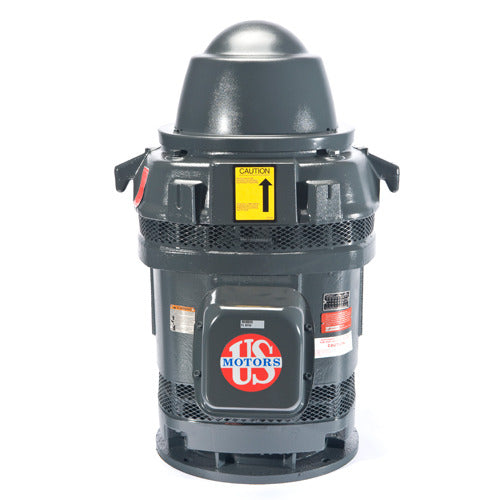

US-Nidec HO150V2SLG Vertical Hollow Shaft Motor 150 HP

Product Description

The US-Nidec HO150V2SLG is a vertical hollow shaft motor with a power rating of one hundred fifty horsepower. This motor is designed for various industrial applications, particularly in turbine, mix flow, and propeller pumps.

• Three-phase electrical type.
• Maximum down thrust capacity of nine thousand eight hundred pounds.
• Premium efficiency, inverter duty, and weather-protected enclosure.

Product Highlights

This motor is suitable for environments with maximum ambient temperatures up to forty degrees Celsius and altitudes up to three thousand three hundred feet. It features class F insulation and a service factor of one point fifteen for reliable performance during demanding operations.

Product Information

Standard Information

• Motor Type: Vertical Hollow Shaft Motor
• Voltage: Four hundred sixty volts

Technical Specifications

• Frame Size: H444TP
• Coupling Height: forty-four and twenty-five thirty-seconds inches
• Base Diameter: sixteen and a half inches
• Thrust Capacity: nine thousand eight hundred pounds
• Insulation Class: F
• Efficiency: ninety-five point eight percent
• Service Factor: one point fifteen
• Application: Suitable for turbine, mix flow, and propeller pumps.
