US-Nidec HD2P1G General Purpose Motor 2 HP 3600 RPM 575 Voltage

Product Description

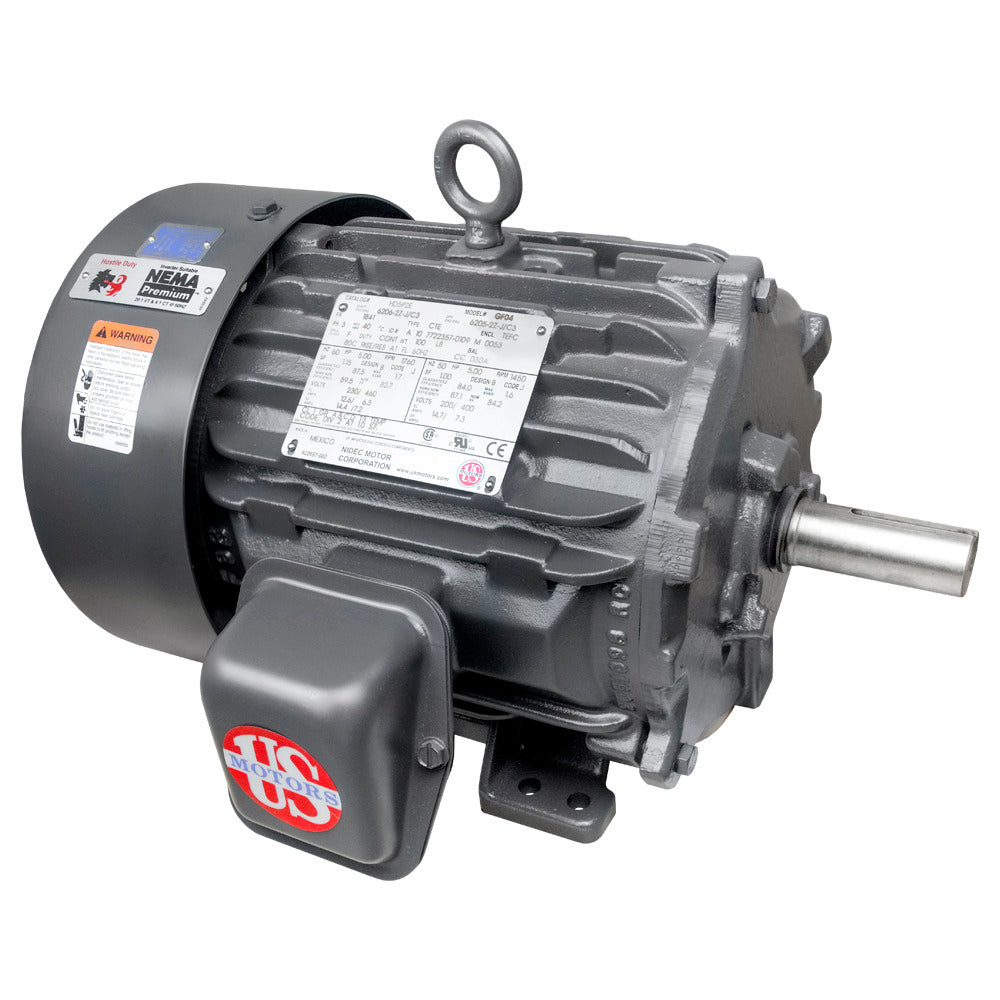

The US-Nidec HD2P1G General Purpose Motor delivers reliable performance in various demanding environments. This three-phase motor operates at two horsepower and 3600 RPM, making it suitable for many industrial applications. The cast iron construction ensures durability, while the TEFC enclosure protects against contaminants.

• Ideal for pulp and paper plants, saw mills, and chemical facilities.
• Rated at two horsepower and 3600 RPM with a 575 volt rating.
• Utilizes ball bearings for increased reliability and performance.

Product Highlights

This motor provides efficient and consistent power in tough operating conditions, with a design prioritizing longevity and reliability.

Product Information

Standard Information

• Motor Type: General Purpose
• Power Rating: 2 HP
• Voltage: 575
• Phase: Three
• Efficiency: 86.50%

Technical Specifications

• RPM: 3600
• Frame Size: 145T
• Enclosure: TEFC
• Amperage: 2
• Rotation: REV
• Mounting Type: Horizontal / Footed
• Bearings Type: Ball / Ball
• Duty Rating: Hostile Duty
