US Motors HD20P2E TEFC 20 HP 3-Phase 1775 RPM Motor

Product Description

The US Motors HD20P2E is a robust 20 HP motor designed for demanding industrial applications. It operates at 1775 RPM and supports voltages from 208-230V to 460V, making it versatile for various electrical systems.

• 20 HP power output
• 1775 RPM speed
• 208-230/460V versatility

Product Highlights

This motor features a TEFC (Totally Enclosed Fan Cooled) design, ensuring protection against contaminants. It has a rigid base mount and a keyed shaft, making it suitable for heavy-duty use in harsh environments.

Product Information

Standard Information

• Brand: US Motors
• MPN: HD20P2E

Technical Specifications

• Horsepower: 20 HP
• Speed: 1775 RPM
• Voltage: 208-230/460V
• Phase: Three

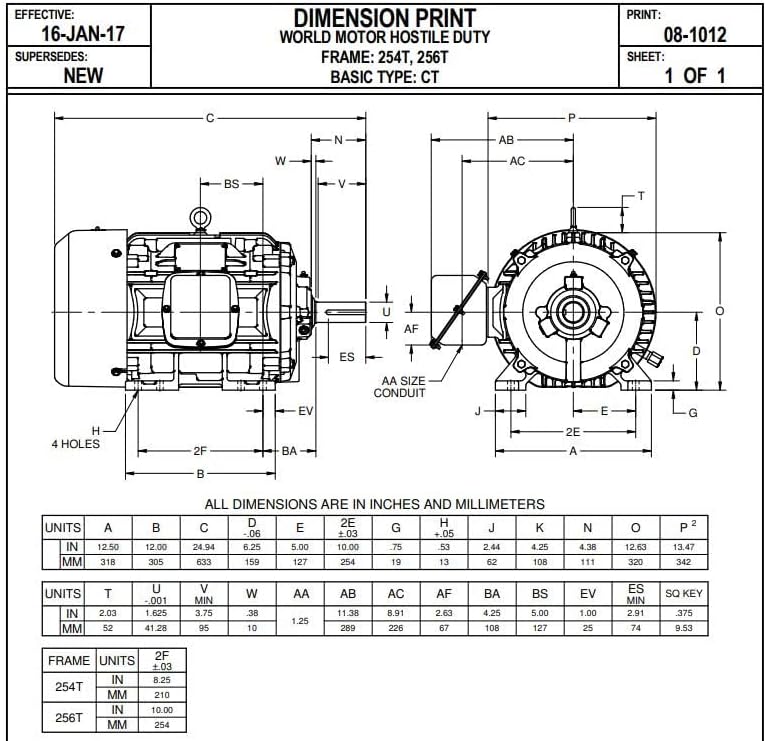

• Frame: 256T
• Enclosure: TEFC
• Material: Cast Iron
• Amperage: 47/23.7
• Insulation Class: F
• Efficiency: 93%
• Service Factor: 1.15
• Weight: 340 lbs
