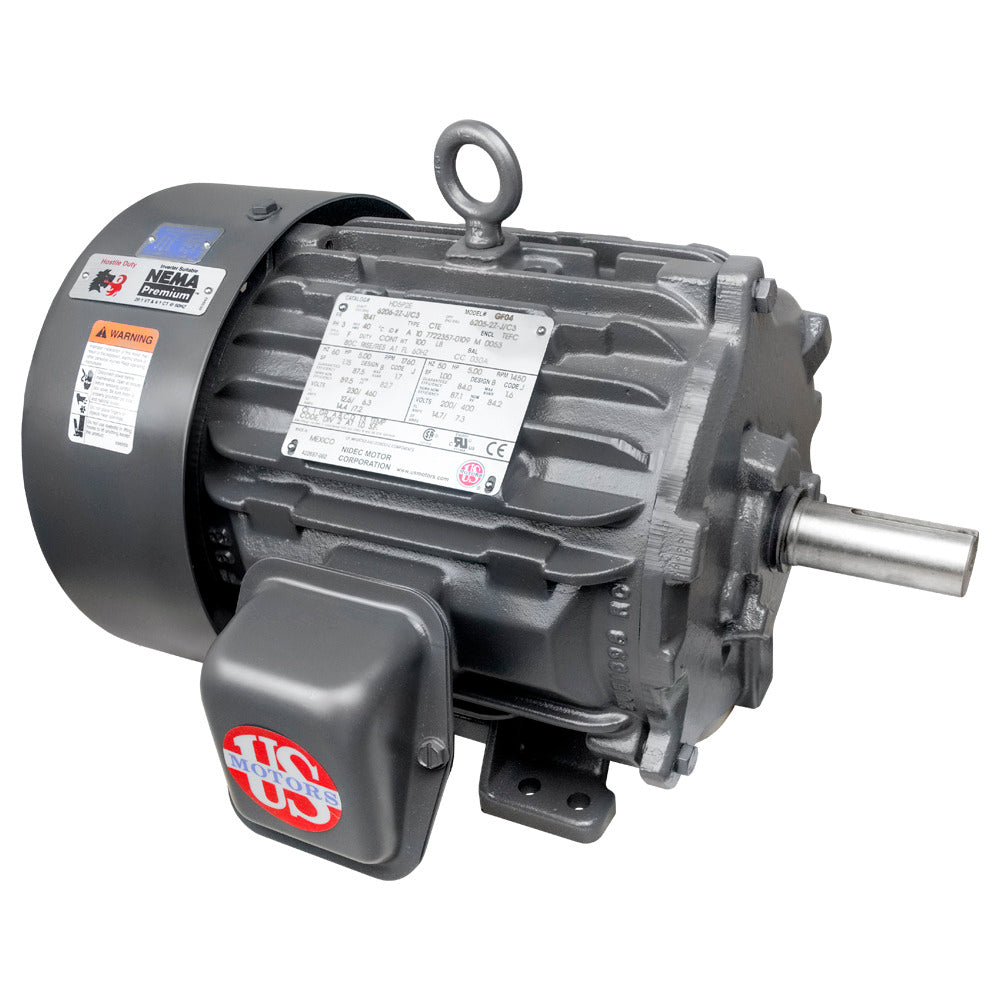

US-Nidec HD10V3B Inverter Duty Motor 10 HP 230/460

Product Description

The US-Nidec HD10V3B is an inverter duty motor with 10 horsepower. Designed for three-phase applications, this motor operates at both 230 and 460 volts. It features a totally enclosed fan-cooled (TEFC) design, ensuring it can operate in various environments while maintaining efficiency.

• Three-phase, inverter duty motor rated at 10 HP
• Voltage options: 230V and 460V with a current of 24.9/12.4 amps
• Durable construction using cast iron for structural integrity

Product Highlights

This motor is suited for use in applications demanding reliable performance and efficiency. It is equipped with ball bearings for smooth operation and has a service factor of 1.15, providing extra reliability under load.

Product Information

Standard Information

• Electrical Type: Three Phase
• Frame: 256T
• Mounting: Horizontal / Footed
• Material: Cast Iron

Technical Specifications

• Enclosure: TEFC
• Amperage: 24.9/12.4
• Rotation: REV
• Bearings Type: Ball / Ball
• Bearings Size: 6209-2Z-J/C3 / 6309-2Z-J/C3
• Efficiency: 91.00%
• Insulation Class: F
