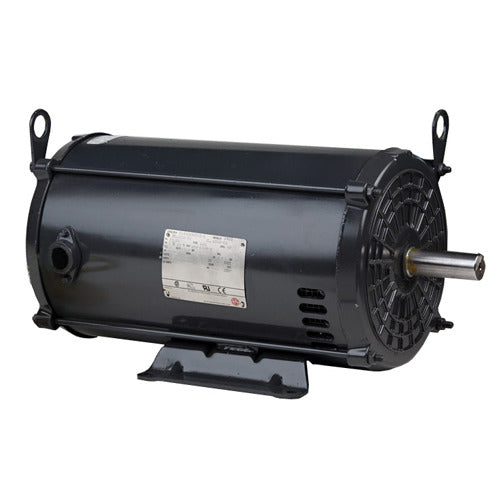

US-Nidec FD7CM1K18Z Crop Dryer Motor 7 1/2 HP 3600 RPM

Product Description

The US-Nidec FD7CM1K18Z is a crop dryer motor designed for agricultural applications. This motor operates at seven and a half horsepower and a speed of three thousand six hundred RPM. It features a rolled steel construction, which provides durability and longevity in demanding environments.

• Capacitor start type for reliable operation
• Thermostat overload protection for enhanced safety
• Rigid base mounting for stability during use

Product Highlights

This crop dryer motor is engineered to perform efficiently, with an efficiency rating of eighty-eight point seventy percent. It is suitable for a single-phase, two hundred thirty-volt application and is designed for reversing operations.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: FD7CM1K18Z

Technical Specifications

• Electrical Type: Cap Start
• HP: 7 1/2
• RPM: 3600
• Frame: 184TZ
• Enclosure: ODP
• Phase: Single
• Voltage: 230
• Rotation: REV
• Overload: Thermostat
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6204-2Z / 6206-2Z
• Mounting: Rigid Base
• Amperage: 30.0
• Shaft Type: Single
