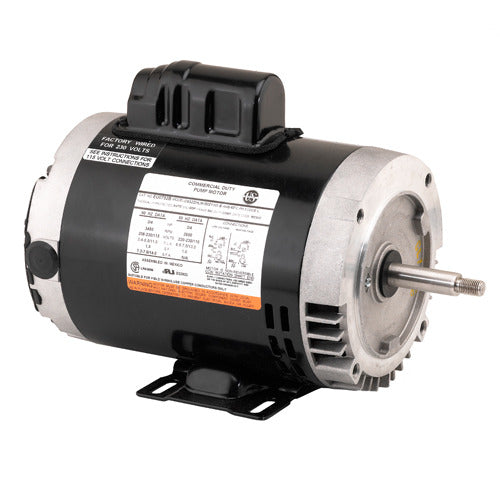

US-Nidec EC0752 General Purpose Motor 3/4 HP 3600 RPM

Product Description

The US-Nidec EC0752 is a general-purpose motor designed for various applications. This motor has a power of three-fourths horsepower and a speed of three thousand six hundred RPM. It features a robust rolled steel construction and is suitable for single-phase operation with a voltage range of one hundred fifteen to two hundred eight/two hundred thirty volts.

• Cap start electrical type
• ODP enclosure
• Auto overload protection

Product Highlights

This motor is ideal for HVAC systems, fans, and pumps, offering reliable performance and durability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EC0752

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 3/4 HP
• RPM: 3600
• Frame Size: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230
• Rotation: Reverse
• Overload Protection: Automatic
• Material: Rolled Steel
• Bearings Type: Ball
• Mounting Type: C-Face
• Amperage: 12.8/7.0-6.4
• Shaft Type: Single
