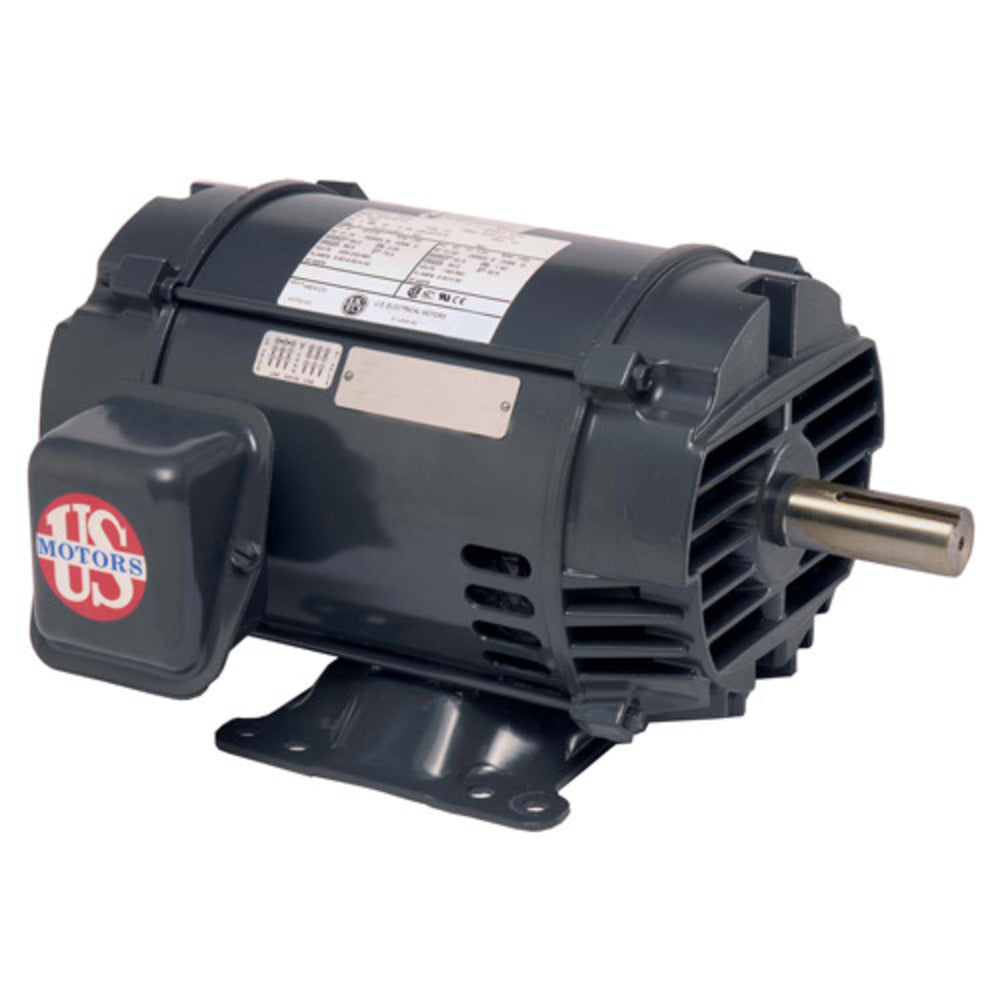

U.S. Motors D32P2AH General Purpose Three Phase ODP Rigid Base Motor

Product Description

The U.S. Motors D32P2AH is a general-purpose three-phase motor designed for various applications. With a power output of one and one-half horsepower and a speed of eighteen hundred rpm, it is suitable for continuous duty use. This motor operates on a voltage rating of 208-230/460 volts and has an open drip-proof (ODP) enclosure.

• 1.5 horsepower rating
• Compatible with 50/60 Hz frequencies
• Rigid base mounting for secure installation

Product Highlights

This motor is ideal for settings requiring reliable and energy-efficient performance in commercial and industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D32P2AH

Technical Specifications

• Phase: Three Phase
• Full Load RPM: 1800 RPM
• Mounting: Rigid Base
• Motor Application: General Purpose
• Frequency: 50/60 Hz
• Enclosure: ODP - Open Drip Proof
• Poles: 4
• Voltage Rating: 208-230/460
• Duty: Continuous Duty
• Frame: 56H
• Insulation: B
• Full Load Amps: 5-4.8/2.4
• Weight: 33.33 LB
• EAN or UPC: 786382112240
