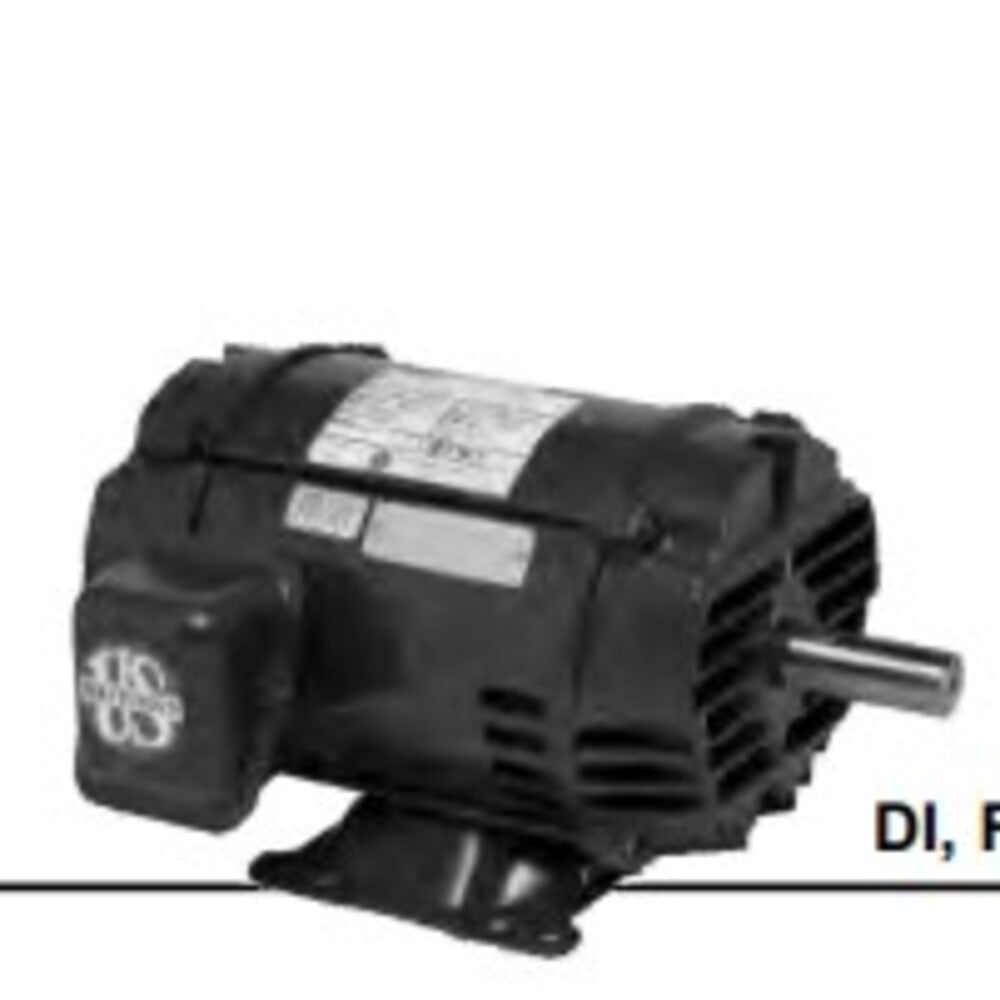

US-Nidec D30V1BS Inverter Duty Motor 30 HP 230/460V

Product Description

The US-Nidec D30V1BS is a reliable inverter duty motor designed for various industrial applications. This three-phase motor operates at thirty horsepower, making it suitable for heavy-duty tasks. With a voltage range of two hundred thirty to four hundred sixty volts, it meets the requirements of many systems.

• Key Features:
• Powerful operation at thirty horsepower.
• Three-phase electrical type ensures efficient performance.
• Open drip-proof enclosure for enhanced durability.

Product Highlights

This motor offers a wide speed range and is built to handle variable torque applications. It is ideal for air moving and pumping tasks where performance is critical.

Product Information

Standard Information

• Frame: 284TS
• Mounting: Horizontal / Footed

Technical Specifications

• Power: 30 HP
• Voltage: 230/460 V
• RPM: 3550
• Amperage: 69/34 A
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Efficiency: 91.70%
• Torque: 180.00% FLT
