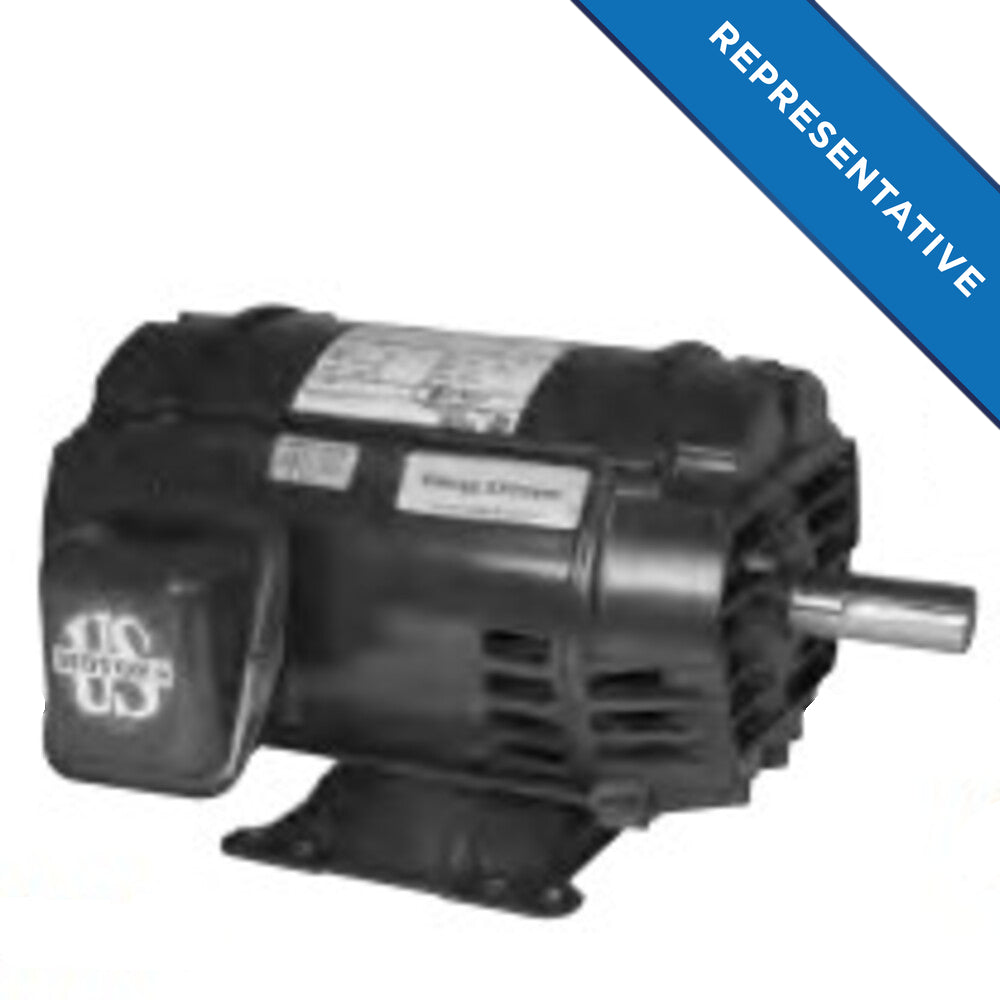

US-Nidec D30P1GS General Purpose Motor 30 HP

Product Description

The US-Nidec D30P1GS is a general purpose motor designed for reliable performance in various applications. This three-phase motor has a power rating of thirty horsepower and operates at a voltage of five hundred seventy-five volts. It features an open dripproof (ODP) enclosure that allows for efficient air circulation, making it suitable for environments with minimal exposure to moisture.

• High efficiency rating at 91.7%
• Ball bearing design for smooth operation
• Compact frame size of 284TS for easy installation

Product Highlights

The D30P1GS motor is built with durability in mind. It has a robust construction with rolled steel material for longevity and is designed for easy horizontal or footed mounting.

Product Information

Standard Information

• Electrical Type: Three Phase
• Voltage: 575 Volts

Technical Specifications

• Horsepower: 30 HP
• RPM: 3550
• Frame Size: 284TS
• Overload Protection: None
• Amperage: 27.4 Amps
• Efficiency: 91.70%
• Weight: Not Specified
• Mounting Type: Horizontal / Footed
