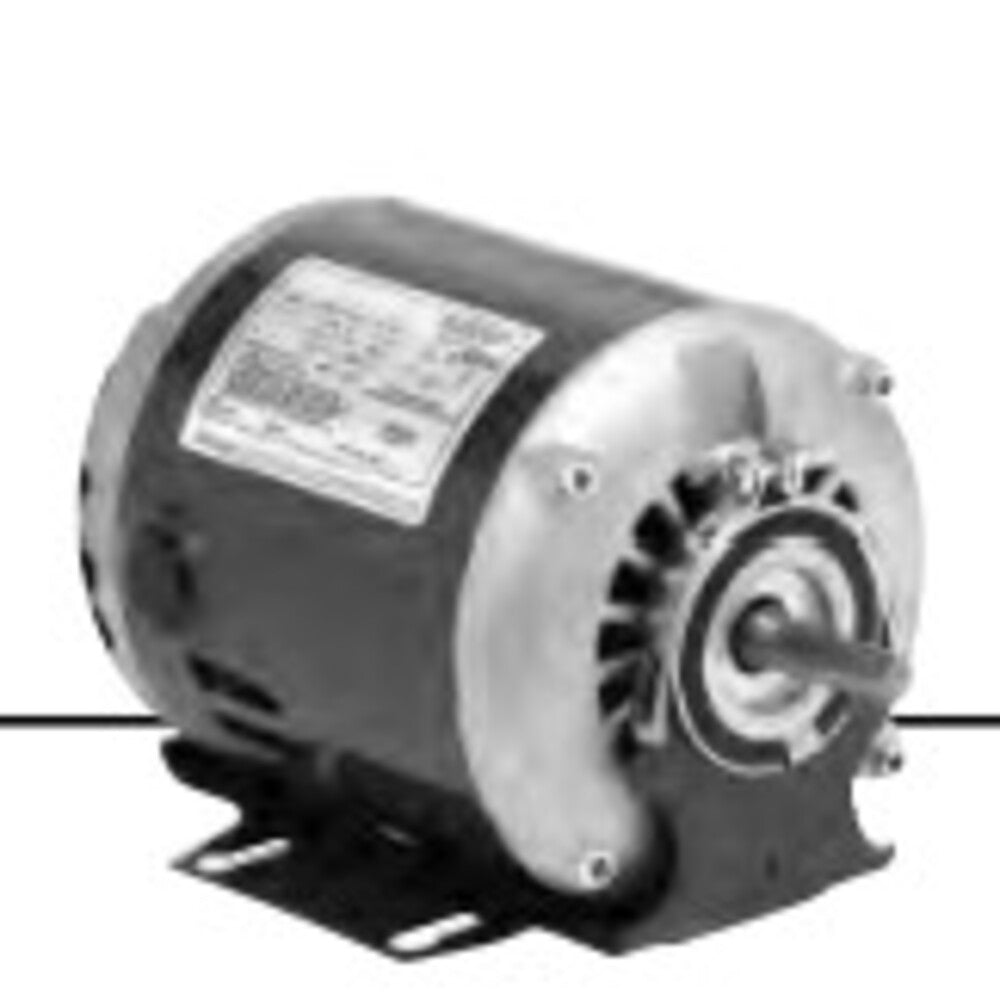

US-Nidec 2910 General Purpose Motor 1/4 HP Single Phase Open Dripproof

Product Description

The US-Nidec 2910 is a general purpose motor designed for various applications. This motor operates on a split phase system and is rated at one quarter horsepower. With a maximum speed of one thousand seven hundred twenty-five RPM, it meets the requirements for both residential and commercial use.

• Electrical Type: Split Phase
• Voltage: 115
• Bearings Type: Ball / Ball

Product Highlights

This motor is ideal for HVAC applications, fans, and pumps. Its rigid base allows for stable installation.

Product Information

Standard Information

• Frame Size: 56Z
• Weight: 23.23 lbs

Technical Specifications

• Horsepower: 1/4
• KW: 0.2
• Stack: 1.5
• Phase: Single
• Material: Rolled Steel
• Amperage: 5.4
• Diameter: 6.5 inches
• Rotation: REV
