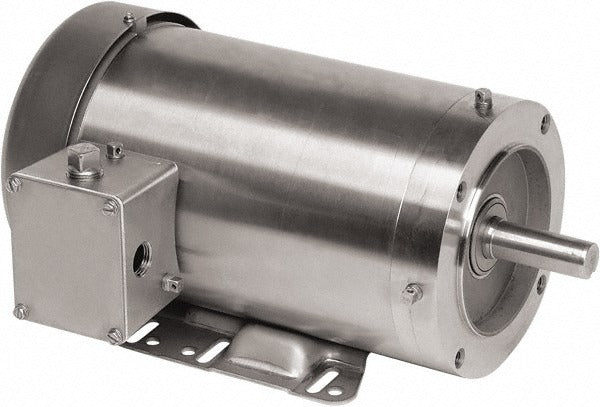

Us Motors WDS32P2AC 1.5 Hp Tefc Ac Motor 145 Frame

Product Description

The US MOTORS WDS32P2AC is a three-phase, premium efficient AC motor built for demanding industrial and commercial applications. It runs at 1755 nameplate RPM, produces 1.5 horsepower, and operates on 208 to 230 or 460 volts at 60 Hz. The motor uses a totally enclosed fan-cooled (TEFC) enclosure with a stainless steel frame, making it suitable for environments where washdowns or contaminants are a concern. A C-Face with base mount configuration provides flexible installation options. Class F insulation and double sealed ball bearings contribute to reliable operation under continuous load. Licensed electricians and industrial maintenance technicians typically handle installation and commissioning of this motor.

This motor is rated for food processing applications where stainless steel construction and a TEFC enclosure are required to meet sanitation and environmental demands. The 145 frame size fits standard NEMA mounting footprints common in conveyor drives, pump systems, and process equipment found in light industrial and food service facilities. Single-speed operation and a 1.00 service factor make it a straightforward drop-in for fixed-speed drive systems. It is suited for both new equipment builds and replacement installations where a premium efficient three-phase motor with a C-Face mount is specified.

Key Features

• 1.5 HP output at 1755 nameplate RPM for consistent fixed-speed performance
• TEFC enclosure with stainless steel frame for washdown and food processing environments
• Dual voltage rated at 208 to 230 or 460 volts, 60 Hz for wiring flexibility
• C-Face with base mount on NEMA 145 frame for standard equipment compatibility
• Double sealed ball bearings for extended service life with reduced maintenance
• Class F insulation for thermal resilience under sustained load conditions

Compatibility

Rated for food processing applications per supplier specification. Fits standard NEMA 145 frame mounting configurations. Suitable as an OEM-style replacement for three-phase TEFC motors with a C-Face and base mount on 145 frame equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power before removing or installing the motor. Verify supply voltage matches the motor nameplate before connecting leads, and confirm proper overload protection sizing for the selected voltage configuration. Ensure the mounting surface is level and fasteners are fully secured before startup.
