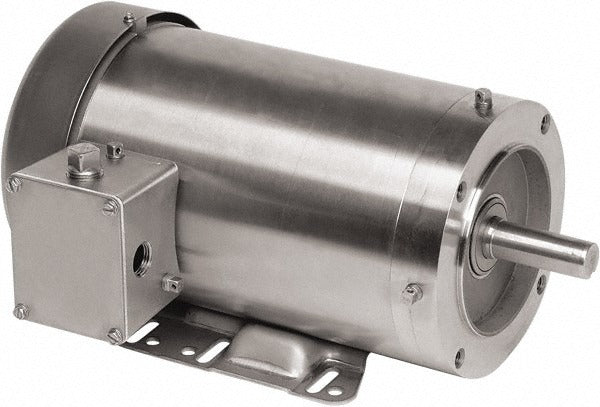

Us Motors WDS2P2AC 2 Hp Three Phase Tefc Ac Motor

Product Description

The US MOTORS WDS2P2AC is a three-phase, premium efficient AC motor designed for demanding industrial and commercial applications. Rated at 2 horsepower and 1750 RPM nameplate speed, this motor runs on 208 to 230 volts or 460 volts at 60 Hz, giving installers flexibility across common supply voltages. It features a TEFC (Totally Enclosed Fan-Cooled) enclosure with a stainless steel frame and a C-Face with base mount configuration. Full load amperage is 5.7 to 5.4 amps on lower voltage and 2.7 amps on 460 volts. Class F insulation and a service factor of 1.00 round out the core electrical ratings. Licensed electricians and industrial maintenance technicians are the primary installers.

The WDS2P2AC is rated for food processing environments, where stainless steel construction and TEFC enclosure protection are standard requirements. The C-Face with base mount configuration suits direct-coupled pump and blower applications as well as gear-reducer drives common in food processing lines. The NEMA 145 frame size fits standard mounting footprints used across a wide range of industrial equipment. Single-speed operation simplifies integration into fixed-speed drive systems or across-the-line starters.

Key Features

• 2 HP three-phase motor with 1750 RPM nameplate speed for consistent torque output
• Dual voltage rating (208-230V / 460V) supports multiple supply configurations
• TEFC enclosure with stainless steel frame suited for food processing environments
• C-Face with base mount for direct coupling or gear-reducer installations
• NEMA 145 frame size for straightforward drop-in replacement on standard equipment
• Double sealed ball bearings for reduced maintenance intervals in wet or contaminated environments

Compatibility

Designed as an OEM-style replacement or new-installation motor for industrial equipment using a NEMA 145 frame, C-Face with base mount, three-phase configuration rated for food processing service.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power before handling or wiring the motor. Verify supply voltage matches the nameplate rating before making connections, and confirm the motor rotation direction before coupling to driven equipment. Do not operate the motor without proper coupling guards in place.
