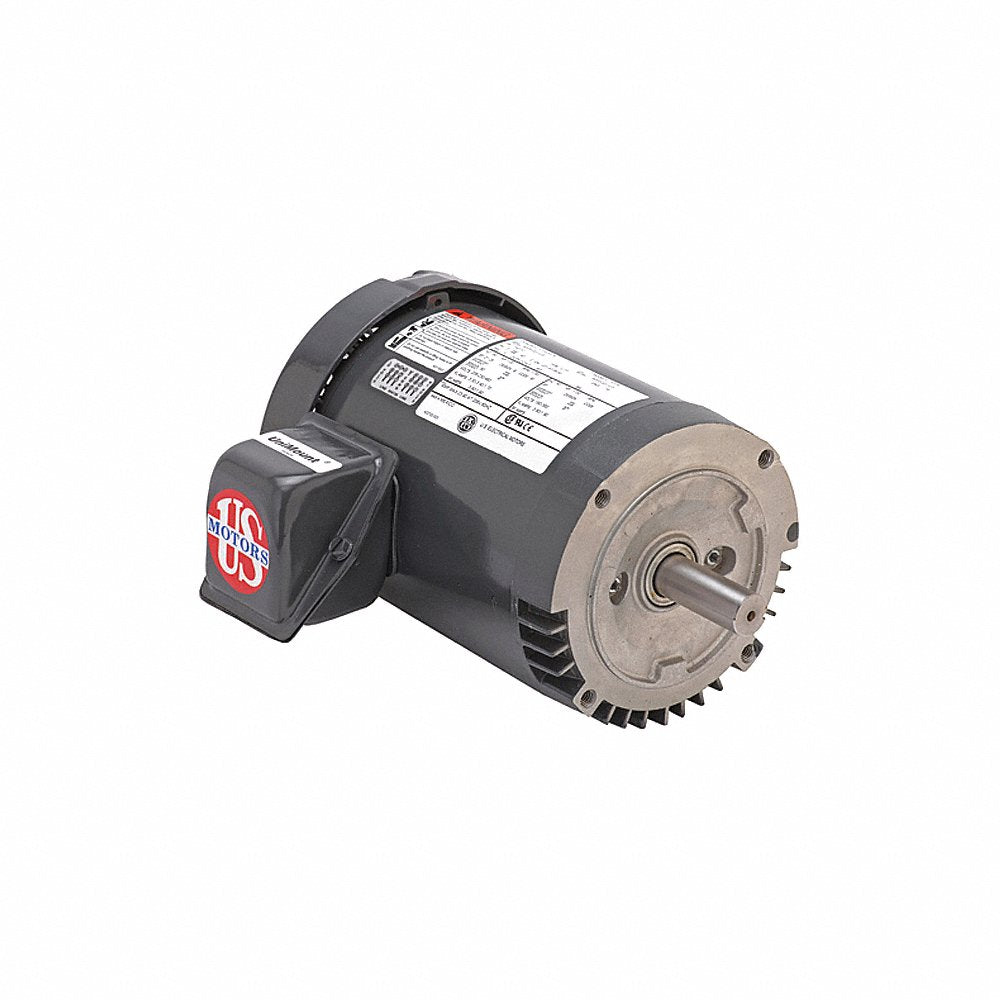

Us Motors USMOTOR-T32P1ACR General Purpose Motor 1 1/2 hp 56C Frame

Product Description

The US MOTORS USMOTOR-T32P1ACR is a 1 1/2 horsepower general purpose motor designed for continuous duty applications. This 3-phase motor operates at 3600 RPM with a 56C frame and features a totally enclosed fan-cooled enclosure for enhanced durability. It is suitable for various industrial and commercial uses, offering reliable performance with a voltage rating of 208-230/460V.

• Totally Enclosed Fan Cooled design for protection in harsh environments
• C-Face Mount for versatile installation options
• 1 1/2 HP motor with 3600 RPM for efficient power delivery

Product Highlights

General purpose motor with continuous duty and robust construction for various applications.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: USMOTOR-T32P1ACR
• Country of Origin: Mexico

Technical Specifications

• Dimensions C: 12.3 inches
• Overall Length: 12 5/16 inches
• Poles: 2
• Bearing Protection: Double Shields
• Duty Cycle: Continuous Duty
• Frame: 56C
• Full Load Amps: 4.9-5/2.5A
• Horsepower: 1 1/2 hp
• Insulation Class: Class B
• Length Less Shaft: 10 3/8 inches
• Motor Application: General Purpose
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Frame Material: Steel
• Motor Shaft Design: Keyed
• Motor Shaft Rotation: Counterclockwise
• Mounting: C-Face
• Number of Speeds: 1
• Phase: 3
• RPM: 3600 RPM
• Shaft Diameter: 1/2 inch
• Shaft Length: 1 15/16 inches
• Speed Range: 3001-3600 RPM
• Usable at 208V: Yes
• Operating Voltage: 230V AC
• Voltage Rating: 208-230/460V
• Certifications: CSA, CE, UL
