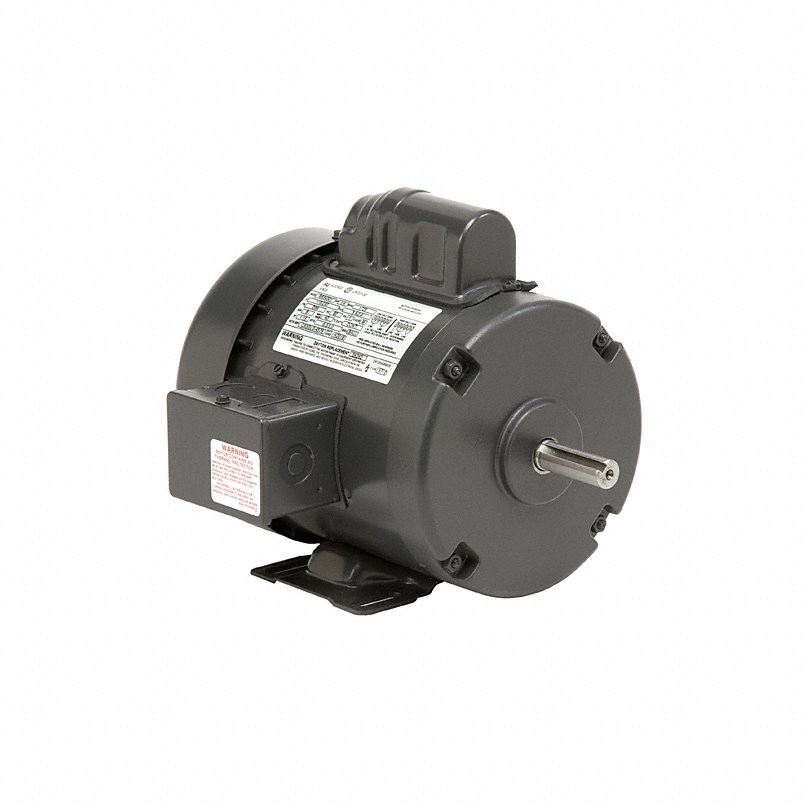

Us Motors USMOTOR-T32C2J14 General Purpose Motor 1.5 Hp

Product Description

The US MOTORS USMOTOR-T32C2J14 is a single-phase, capacitor-start general purpose AC motor rated at 1.5 horsepower and 1,725 RPM at 60 Hz. Built on a 145T frame with a rigid base mounting configuration, it features a totally enclosed fan-cooled (TEFC) enclosure that protects internal components in dusty or wet environments. The motor operates at 115/230V AC and is also usable at 208V, giving installers flexibility across common commercial and light industrial supply voltages. Ball bearings support continuous-duty operation. This motor is installed by licensed electricians and mechanical contractors in a wide range of driven-equipment applications.

This motor is suited for general purpose applications in residential, commercial, and light industrial settings. Typical use cases include driving pumps, compressors, fans, blowers, conveyors, and similar belt- or direct-drive equipment. The 145T frame size is a standard NEMA frame, making it a practical drop-in fit for many equipment setups that specify that frame. The CW/CCW shaft rotation flexibility allows the installer to configure rotation direction at the jobsite to match the driven load requirement.

Key Features

• Capacitor-start design delivers high starting torque for demanding load applications
• Totally enclosed fan-cooled (TEFC) enclosure protects against dust, debris, and moisture ingress
• Dual-voltage rated at 115/230V AC with 208V usability for flexible power supply compatibility
• Standard NEMA 145T rigid base frame for broad equipment fitment
• Bidirectional shaft rotation (CW/CCW) configurable at installation
• Continuous-duty rated with Class B insulation and 1.15 service factor
• CE, CSA, and UL listed for compliance with North American and international standards

Compatibility

Designed as an OEM-style replacement or new-installation general purpose motor for equipment specifying a NEMA 145T frame, single-phase, 1.5 HP, 1,725 RPM motor with rigid base mounting.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power before servicing or mounting the motor. Verify supply voltage matches the motor nameplate wiring configuration (115V or 230V) before energizing. Ensure the mounting base and driven equipment shaft alignment are correct before final fastening to prevent bearing wear and vibration.

Technical Specifications

• Horsepower: 1.5 HP
• Phase: Single
• Nameplate Voltage: 115/230V AC (usable at 208V)
• Nameplate RPM: 1,725 RPM
• Full Load Amps: 14.4/7.2 amps
• Frequency: 60 Hz
• Frame Size: 145T
• Motor Design: Capacitor-Start
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Shaft Diameter: 0.875 inches
• Shaft Length: 2.3125 inches
• Body Length (Less Shaft): 11.9375 inches
• Overall Length: 14.25 inches
• Mounting Type: Rigid Base
• Shaft Rotation: CW/CCW
• Insulation Class: B
• Service Factor: 1.15
• Bearing Type: Ball
• Duty Cycle: Continuous
• Maximum Ambient Temperature: 40 degrees C
• Thermal Protection: None
• Number of Speeds: 1
• Weight: 46 pounds
• Certifications: CE, CSA Certified, UL Listed

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: USMOTOR-T32C2J14
