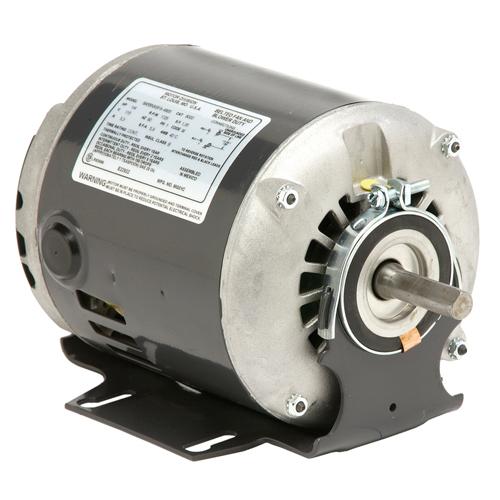

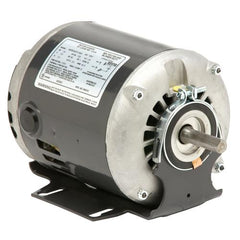

Us Motors USMOTOR-8000 Split Phase Belt Drive Fan and Blower Motor 1/4 HP

Product Description

The US MOTORS USMOTOR-8000 is a 1/4 HP, 115 Volt, 1725 RPM split phase belt drive motor. Designed for fan and blower applications, it features an ODP (Open Dripproof) enclosure, ball bearings, and automatic thermal protection. This 48 frame motor offers a single speed and reversible rotation, operating at 60 Hz with a 1.35 service factor and Insulation Class B for general-purpose use.

• Split Phase Belt Drive motor for fan and blower applications.
• Features 1/4 HP, 115 Volts, 1725 RPM, and 5.3 Amps.
• Equipped with ODP (Open Dripproof) enclosure, ball bearings, and automatic thermal protection.

Product Highlights

This 1/4 HP split phase motor provides reversible rotation and base mounting, suitable for various fan and blower system integrations.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: USMOTOR-8000

Technical Specifications

• Catalog Number: 8000
• Manufacturer: U.S. Motors
• Amperage: 5.3 A
• Bearing Type: Ball
• Enclosure Type: ODP (Open Dripproof)
• Frame Size: 48
• Horsepower: 1/4 HP
• Frequency: 60 Hz
• Insulation Class: B
• Manufacturer Model Number: SA55SFA4865722B
• Maximum Ambient Temperature: 40° C
• Mounting Type: Base
• Number of Speeds: 1
• Phase: 1
• Motor Type: Split Phase
• Rotation: Reversible
• Revolutions Per Minute: 1725 RPM
• Service Factor: 1.35
• Thermal Protection: Automatic
• Voltage: 115 V
