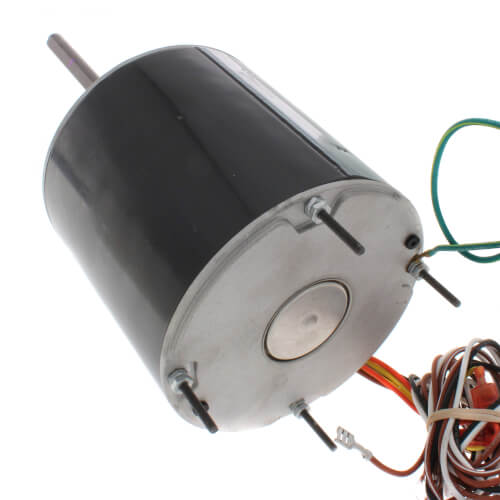

Us Motors USMOTOR-1868H 5.6 inch Mojave TEAO PSC Condenser Fan Motor 3/4 HP 1075 RPM all angle mount

Product Description

The US MOTORS USMOTOR-1868H is a Permanent Split Capacitor (PSC) Condenser Fan Motor from the MOJAVE Series. This 5.6-inch diameter motor features a Totally Enclosed Air Over (TEAO) enclosure and is designed for extreme high ambient conditions. Operating at 208-230V with 3/4 HP and 1075 RPM, it supports all-angle mounting for versatile applications.

• 208/230V input voltage
• 1075 RPM operating speed
• Reversible rotation capability

Product Highlights

Permanent Split Capacitor (PSC) condenser fan motor with a 5.6-inch diameter, TEAO enclosure, and extreme high ambient design.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: USMOTOR-1868H

Technical Specifications

• Motor Type: Permanent Split Capacitor
• Input Voltage: 208/230V
• Horsepower (HP): 3/4
• Rated RPM: 1075
• Phase: 1
• Diameter: 5.6 inches
• Frequency: 60 Hz
• Rotation: Reversible
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Frame Size: 48Y
