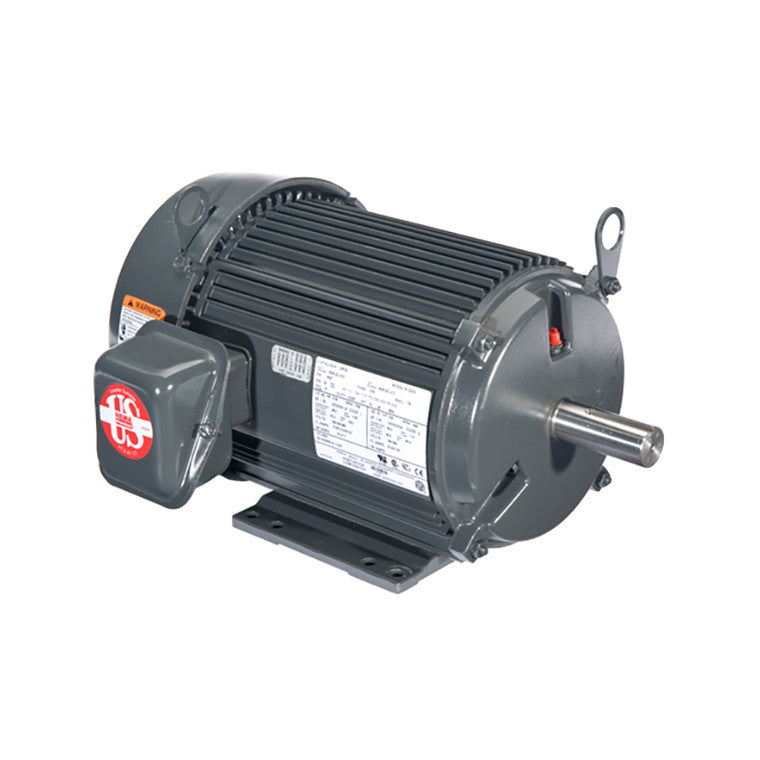

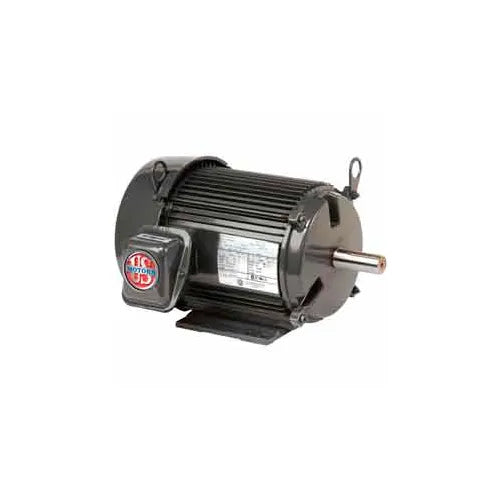

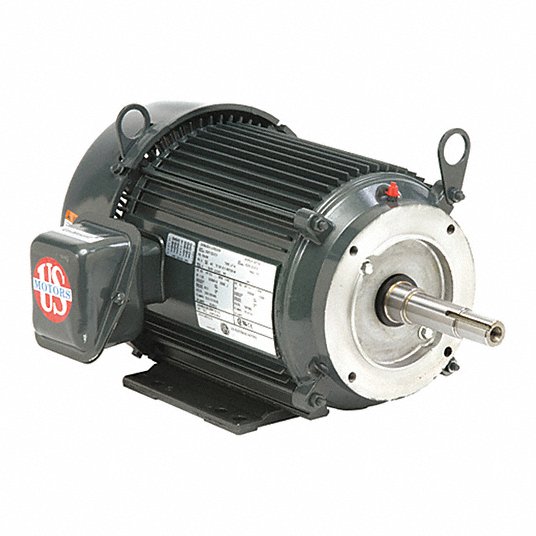

US Motors UN12V3BC Inverter Duty 3-Phase Motor 1/2 HP

Product Description

The US Motors UN12V3BC is a inverter duty motor that offers 1/2 HP power and is designed for three-phase applications. This motor is built for definite purpose applications, ensuring reliable performance in various settings. The totally enclosed fan cooled (TEFC) enclosure protects the internal components from dust and moisture, contributing to its durability and efficiency.

• Inverter duty motor suitable for variable and constant torque applications
• Speed range of 10:1 for variable torque and 5:1 for constant torque
• Designed for material handling, cranes, and machine tools

Product Highlights

This motor supports a wide speed range and is suitable for demanding applications. It can operate at different frequencies, making it versatile for various tasks in the trade.

Product Information

Standard Information

• Brand: US Motors
• MPN: UN12V3BC

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 1140 rpm
• Insulation Class: F
• Voltage: 208-230/460 V
• Phase: 3
• Locked Rotor Amps: 11.27 A
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Frame Size: 56C
• Duty Cycle: Continuous
• Maximum Ambient Temperature: 104 °F
