Us Motors tp-e33-3sp2 Evaporator Motor 3 Speed 1075 Rpm

Product Description

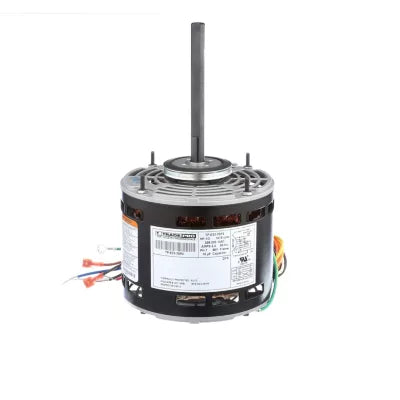

The US MOTORS tp-e33-3sp2 is a universal fixed fractional evaporator motor designed as a direct replacement for residential and light commercial air handling applications. Rated at 1/3 horsepower and operating on 208-230 volts single phase, it draws 2.2 amps at full load. The motor runs at three selectable speeds of 800, 950, and 1075 RPM, making it adaptable to a range of airflow requirements without swapping components. A 10 MFD, 370 or 440 volt run capacitor is required for operation. This is a 48-frame motor installed by HVAC technicians servicing evaporator coil blower assemblies in split systems and air handlers.

The tp-e33-3sp2 fits evaporator blower applications in residential split systems and packaged units where a 48-frame, multi-speed PSC motor is specified. The side shell mount design is pre-drilled to accept Rheem-style mount wings and is also compatible with resilient mount rings, covering a wide range of blower housing configurations. The reversible rotation direction allows the motor to be configured for the specific airflow orientation required at the installation site without ordering a separate unit.

Key Features

• Three selectable speeds: 800, 950, and 1075 RPM for flexible airflow adjustment
• 208-230V single phase operation with 2.2 amp draw
• Side shell mount pre-drilled for Rheem mount wings; accepts resilient mount rings
• 48 frame with 5-inch keyed shaft, 1/2-inch diameter
• Dynamic Self Aligning bearing for extended service life under variable load conditions
• Reversible rotation direction configurable at install
• Requires 10 MFD run capacitor rated 370 or 440 volts (not included)

Compatibility

Designed as a universal OEM-style replacement evaporator motor for 48-frame blower assemblies; pre-drilled side shell mount accommodates Rheem mount wings and standard resilient mount rings.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the air handler before removing the existing motor. Verify run capacitor rating matches the required 10 MFD at 370 or 440 volts before energizing. Confirm rotation direction and speed tap wiring against the equipment wiring diagram before restoring power.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts, single phase
• Amperage: 2.2 amps
• Speeds: 3 (800, 950, 1075 RPM)
• Max Speed: 1075 RPM
• Frame: 48
• Shaft Length: 5 inches
• Shaft Diameter: 1/2 inch
• Shaft Type: Keyed
• Bearing Type: Dynamic Self Aligning
• Rotation: Reversible
• Mount Type: Side shell mount
• Run Capacitor Required: 10 MFD, 370 or 440 volts

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: tp-e33-3sp2
